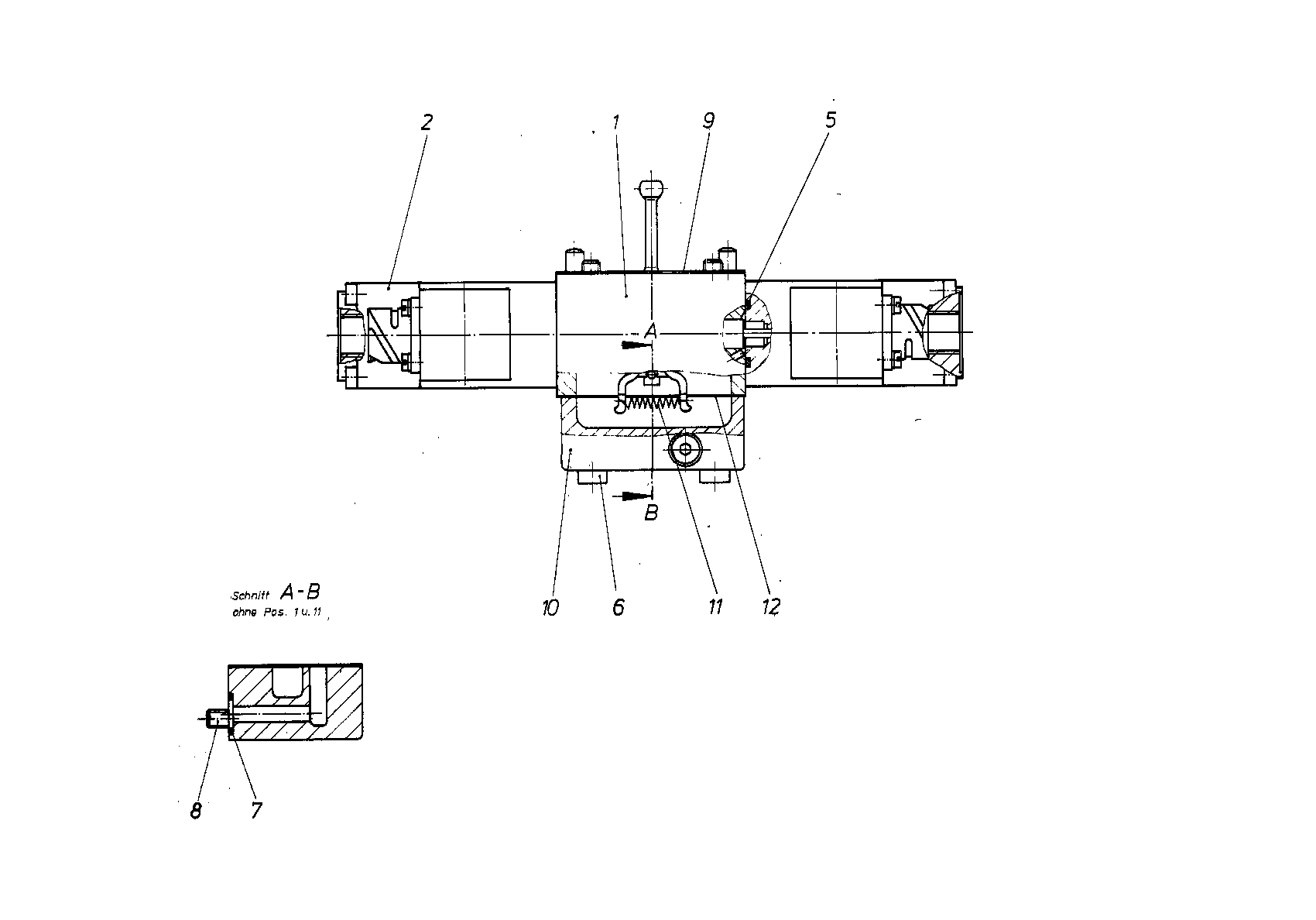

Assembly
CONTROL MODULE
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | — | BASIC UNIT Assembly parts list →L | 1 | |
| 2 | R909441699 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | |
| R909083737 | O-RINGD | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 7 | R902600655 | O-RINGD | 1 | |
| 8 | R909083027 | SOCKET HEAD CAP SCREW | 1 | |
| R902603829 | SEALD | 1 | ||
| 10 | R902046034 | CONNECTION COVER | 1 | |
| 11 | R909435908 | EXTENSION SPRING | 1 | |
| 12 | R902603830 | SEALD | 1 | |
| 98 | R902002395 | SEAL KIT | 1 |
