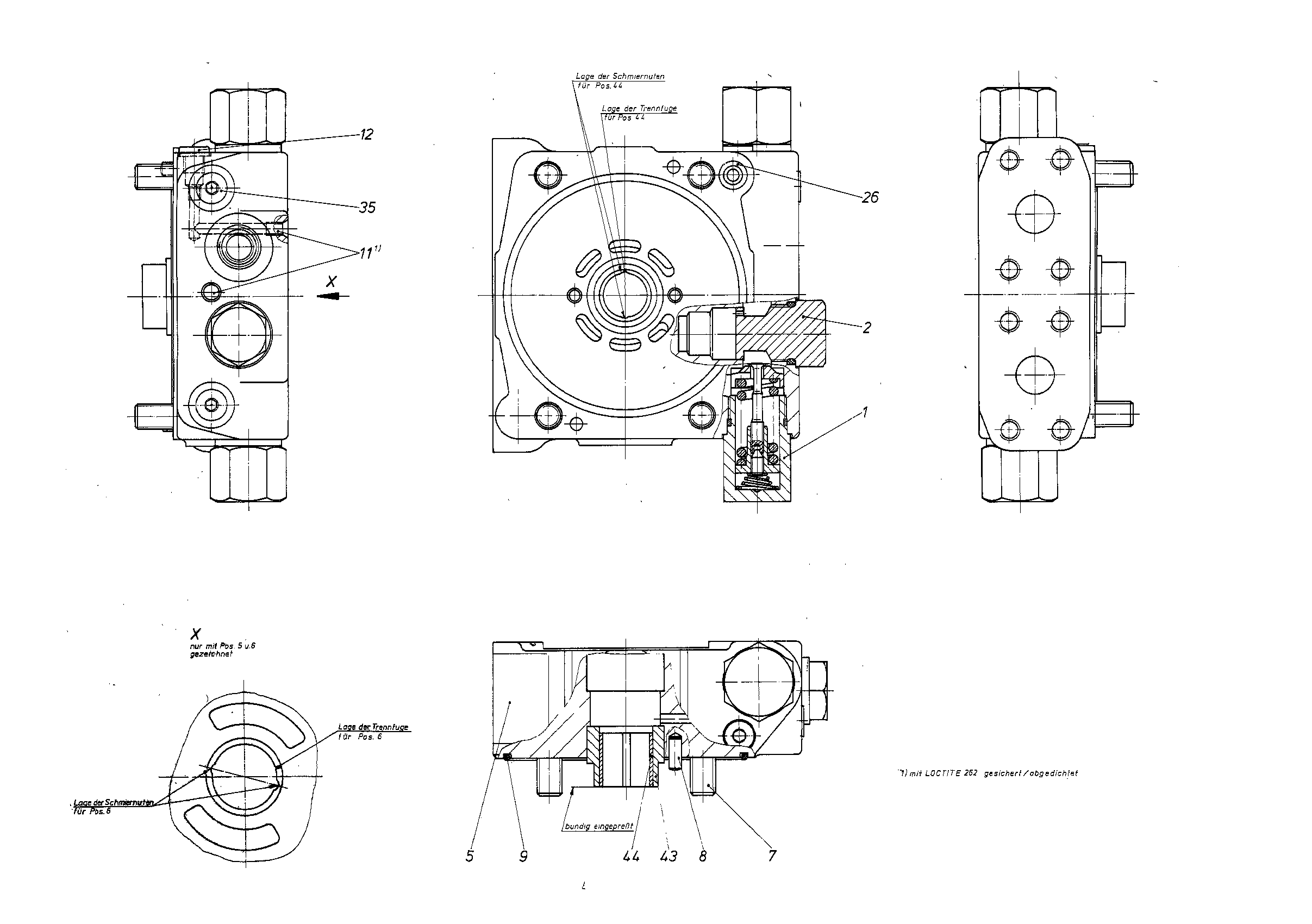

Assembly
CONNECTION PLATE
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909442606 | LOCKING SET | 1 | ||
| — | CONNECTION PLATE | 1 | ||
| R909830402 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909086547 | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909651184 | BUSHING | 1 | ||
| R902260546 | BUSHING | 1 |
