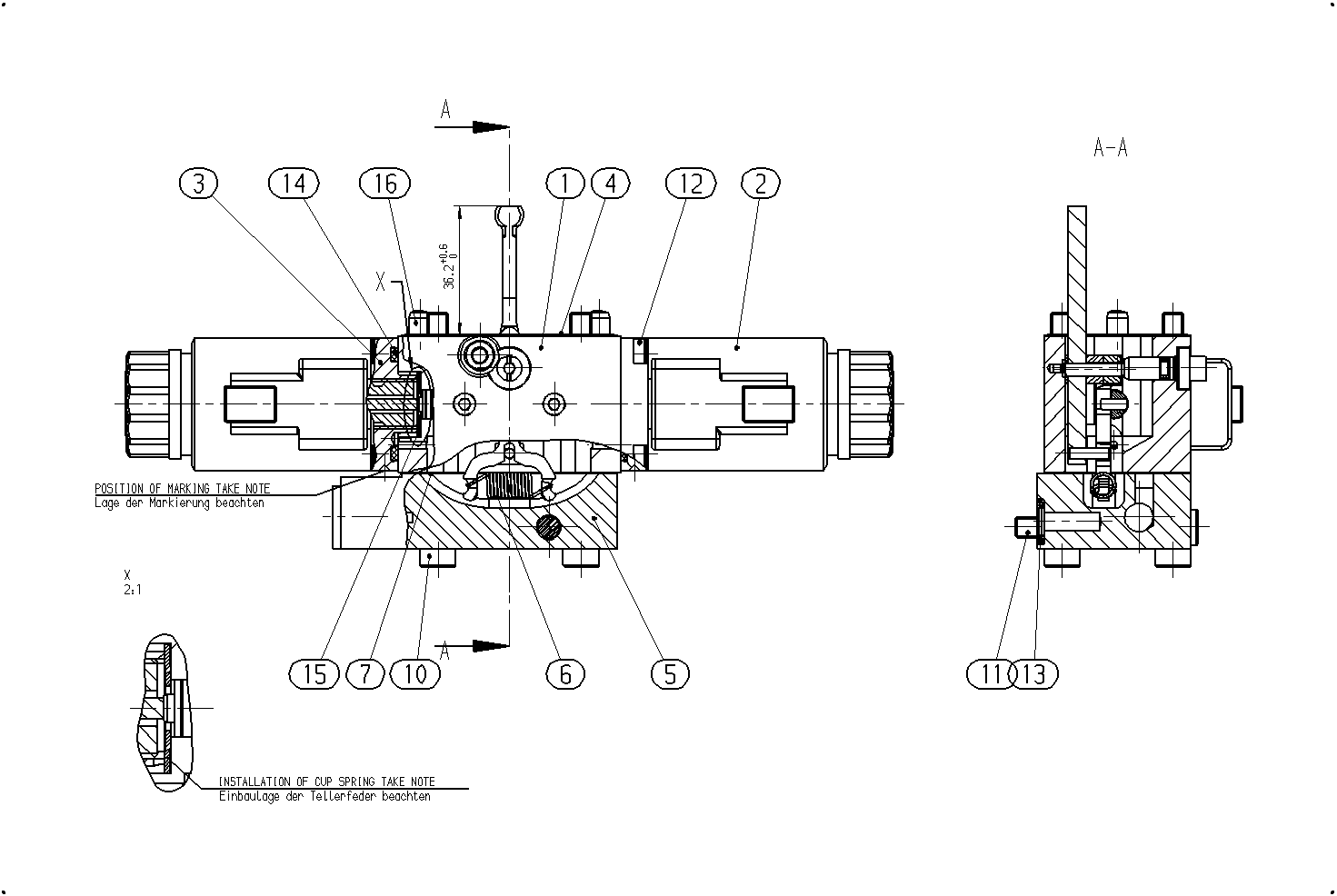

Assembly
CONTROL MODULE
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902046782 | BASIC UNIT Assembly parts list →L | 1 | |
| 2 | R902602734 | PROPORTIONAL SOLENOID | 2 | |
| R902046037 | LOCATION PIECE | 2 | ||
| R902603829 | SEALD | 1 | ||
| R902081822 | COVER Assembly parts list →L | 1 | ||
| R902068150 | EXTENSION SPRING | 1 | ||
| R902603830 | SEALD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083027 | SOCKET HEAD CAP SCREW | 1 | |
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| 13 | R902600655 | O-RINGD | 1 | |
| R909083764 | O-RING | 2 | ||
| — | DISC SPRINGD | 2 | ||
| R913009677 | STRAIGHT PIN | 2 |
