Assembly

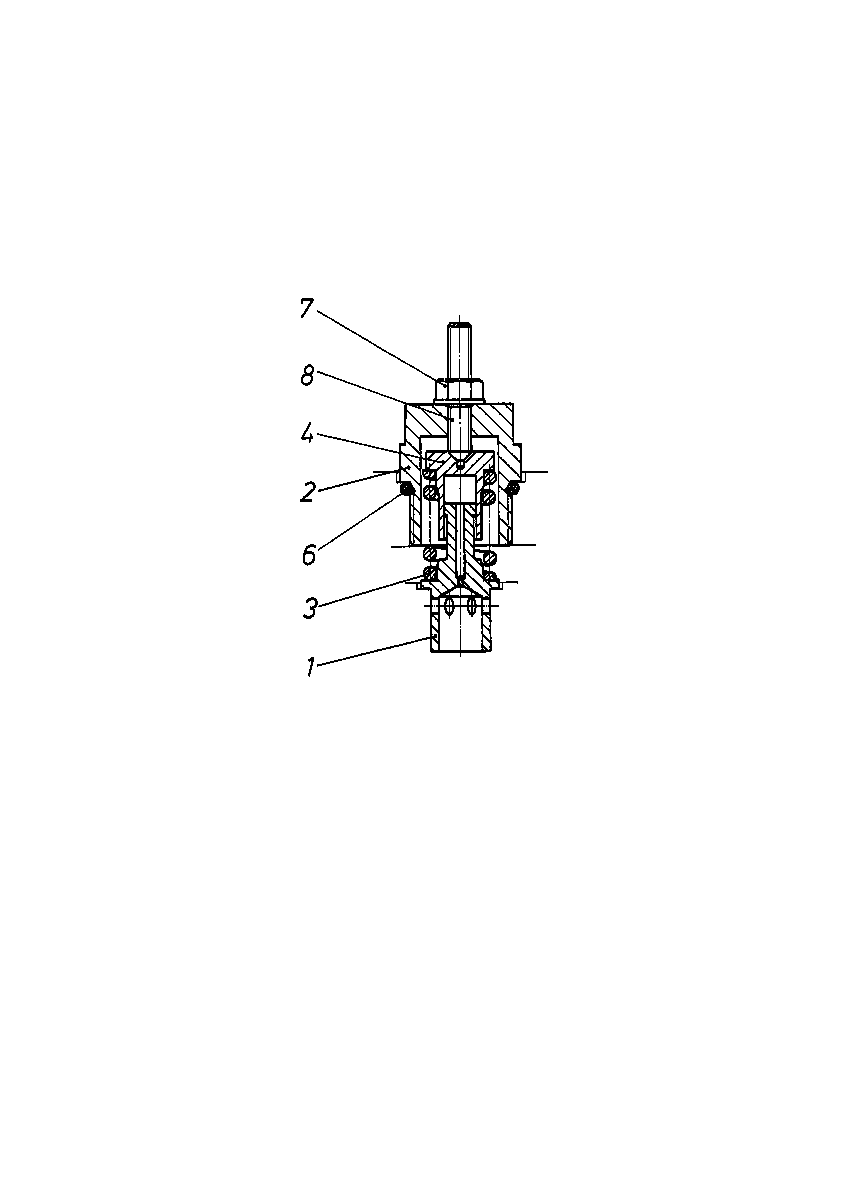

PRESSURE RELIEF VALVE
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432440 | VALVE SPOOL | 1 | |
| 2 | R909413930 | SCREW PLUG | 1 | |
| 3 | R909431661 | COMPRESSION SPRING | 1 | |
| 4 | R909432441 | SPRING DISK | 1 | |
| 6 | R909083761 | O-RINGD | 1 | |
| 7 | R909152425 | SEALING NUTD | 1 | |
| 8 | R909157096 | SETSCREW | 1 |
