Assembly

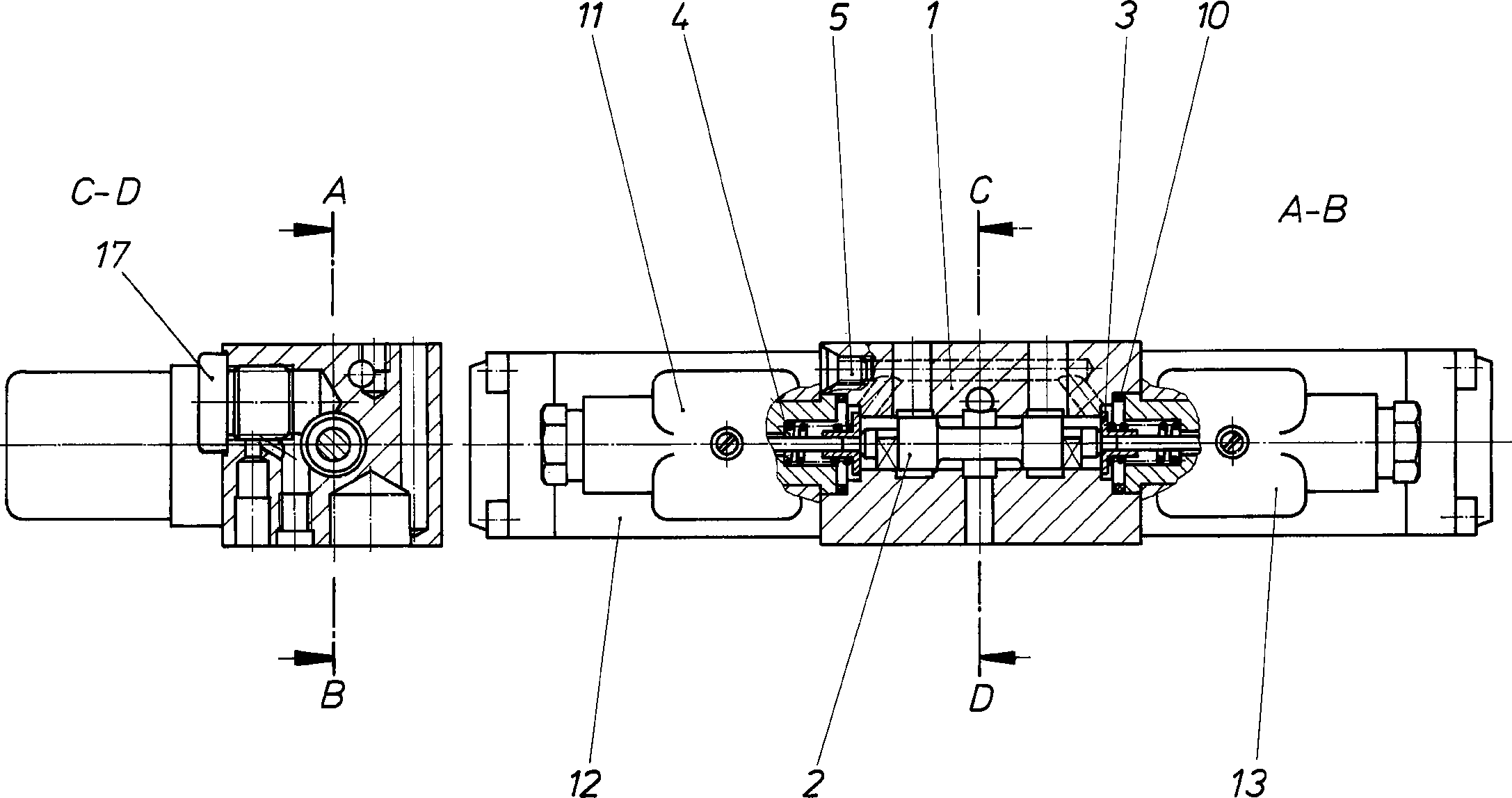

DIRECTIONAL-CONTROL VALVE
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909651421 | VALVE HOUSING | 1 | ||
| R909071345 | CONTROL PISTON | 1 | ||
| R909069544 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909419974 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083734 | O-RINGD | 2 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428266 | SWITCHING SOLENOID Assembly parts list →L | 2 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R909151979 | SCREW PLUG | 1 |
