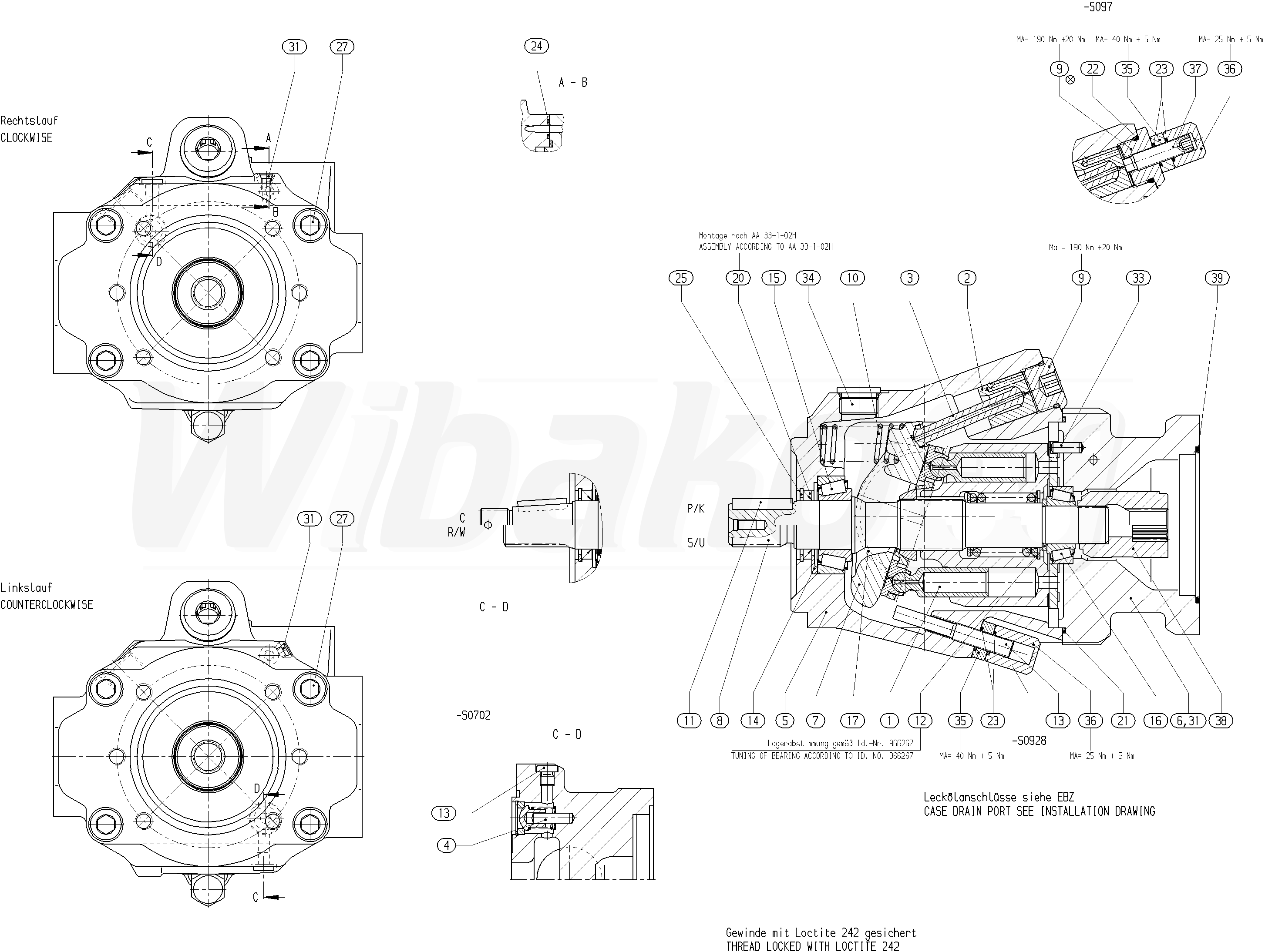

A A10V O 45 EZ3 /52R-VSC12K52P -S3345 (R902490295)
BASE UNIT (151852)

BASE UNIT
(151852)


1

ROTARY GROUP
(13216)

Group »


2

ADJUSTING PISTON
(11875)


3

PISTON ROD
(13290)


5

MOTOR HOUSING
(28804)


6

CONNECTION PLATE
(112593)


7

SWASH PLATE
(15993)


8

DRIVE SHAFT
(13981)


9

SCREW PLUG
(20620)


10

COMPRESSION SPRING
(15981)


12

ADJUSTMENT SHIM
(13222)


13

STOP SCREW
(15832)


15

TAPERED-ROLLER BEARING
(13223)


16

TAPERED-ROLLER BEARING
(13224)


17

BEARING SHELL
(15833)


20

SHAFT SEALING RING
(13226)


21

O-RING
(26278)


22

O-RING
(16233)


23

O-RING
(15835)


24

R-RING
(11889)


25

RETAINING RING
(13229)


27

SOCKET HEAD CAP SCREW
(15982)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(11892)


34

SCREW PLUG
(13231)


35

NUT
(15839)


36

CAP NUT
(16220)


37

STOP SCREW
(115108)


38

SPLINED COUPLING
(19877)


39

O-RING
(13856)



Return
