A A10V O 45 FHD /31L-PSC61N00 -SO105 (R910937871)
Axial piston variable pump , swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 10 cm3. Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518 Working ports UNF. Fastening thread UNF; rear, not for through drive. Without through drive.

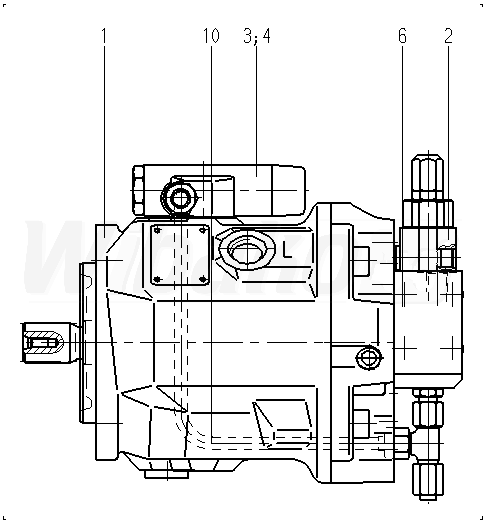

The above diagrams belong to Rexroth www.boschrexroth.com
