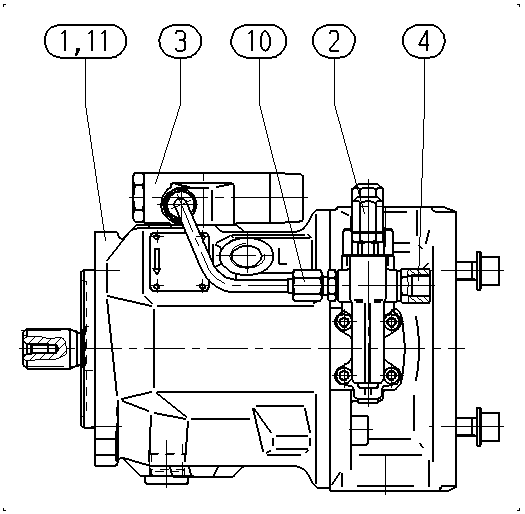

A A10VSO 28 DFLR/31R-PSA12K52 (R902422788)
ADJUSTING PIECE (18435)

ADJUSTING PIECE
(18435)


1

ADJUSTING PISTON
(18441)


2

PISTON GUIDE
(18442)


3

OPPOSED PISTON
(18443)


4

PISTON GUIDE
(18444)


6

COMPRESSION SPRING
(18445)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
