Unit · AXIAL-PISTON PUMP
AL A10V O 28ED 72/53L-VSC62G70TR902466550
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO28ED72/53L-VSC62G70T, material number R902466550. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62).
- Number
- R902466550
- Type code
- AL A10V O 28ED 72/53L-VSC62G70T
- Group
- A10VO 28
- Edition
- 07/2020

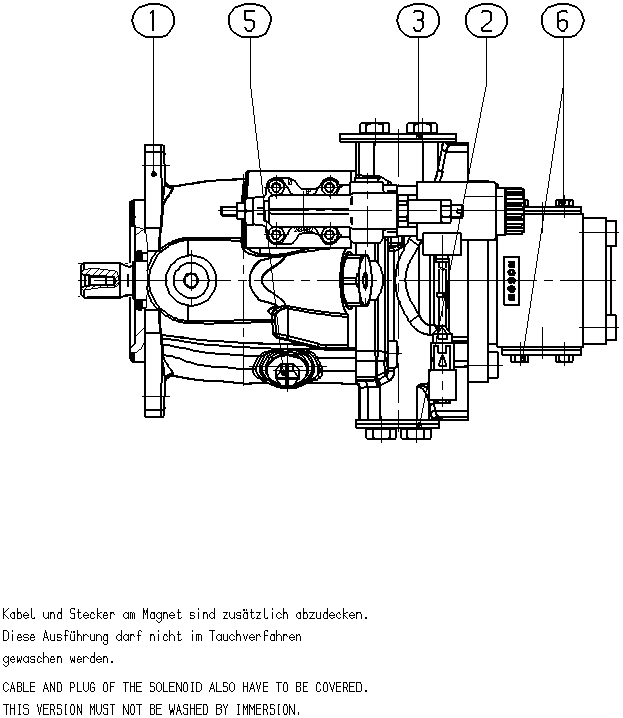

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466551 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902602016 | SEAL SCREW | 1 | ||
| R902448945 | FLANGE COVER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
