Unit · AXIAL-PISTON PUMP
A4VG125EP1D1/32L-NSF10F001XH-SR902077532
Axial piston pump Bosch Rexroth series A4VG, type code A4VG125EP1D1/32L-NSF10F001XH-S, material number R902077532. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Standard/special version: special version (-S).
- Number
- R902077532
- Type code
- A4VG125EP1D1/32L-NSF10F001XH-S
- Group
- A4VG 125
- Edition
- 02/2020

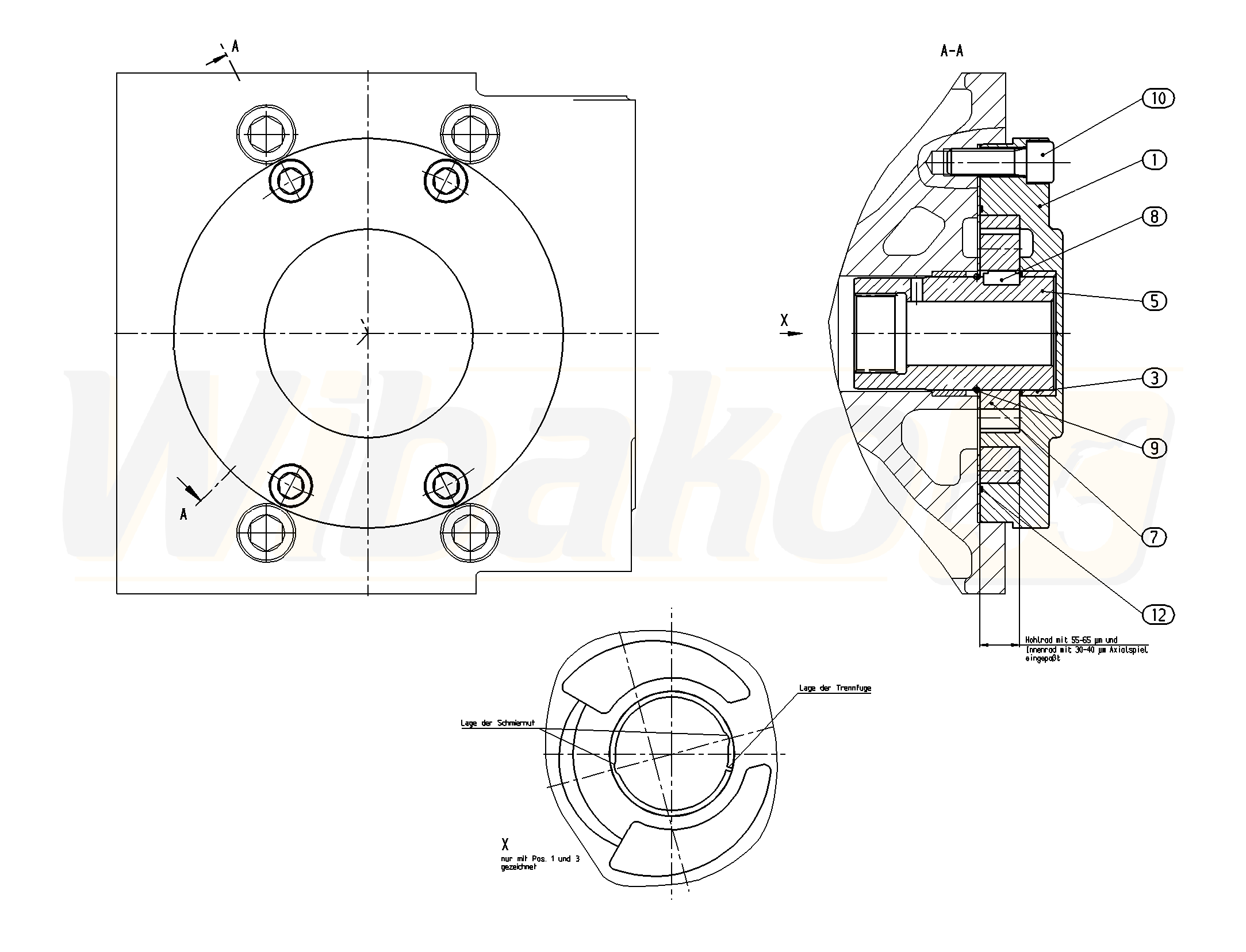

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199776 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902011331 | CONTROL Assembly parts list →L | 1 | ||
| R902078164 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902050299 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902057687 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902078163 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R902602115 | SCREW PLUGD | 1 | ||
| R902601709 | SCREW PLUG | 1 | ||
| R902601708 | SCREW PLUGD | 3 | ||
| R909153862 | SCREW PLUG | 1 | ||
| R909426700 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909831743 | SCREW PLUG | 1 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909426707 | NOZZLE | 1 | ||
| R902077940 | THREADED PART | 1 | ||
| R909083761 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Standard/special version | Special version | -S |
