Unit · AXIAL-PISTON PUMP
A8VO107LR3S/60R1-SO*SV*R909429765
Axial piston pump Bosch Rexroth series A8VO, type code A8VO107LR3S/60R1-SO*SV*, material number R909429765. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Standard / special version: special version (S).
- Number
- R909429765
- Type code
- A8VO107LR3S/60R1-SO*SV*
- Group
- A8VO 107
- Edition
- 06/2020

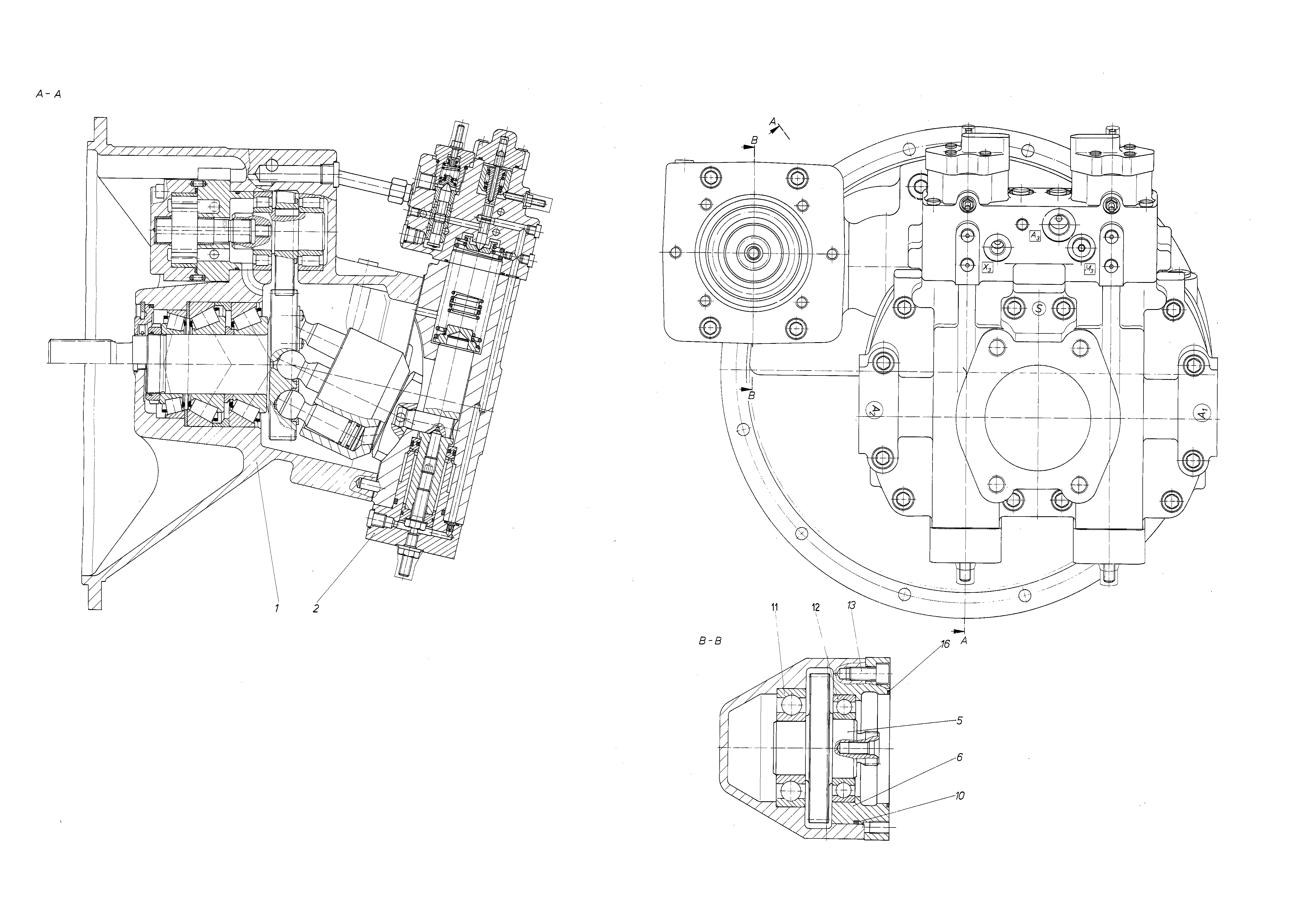

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429766 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909429767 | CONTROL Assembly parts list →L | 1 | ||
| R909431720 | TOOTHED WHEEL | 1 | ||
| R909431721 | FLANGE | 1 | ||
| R909085366 | O-RINGD | 1 | ||
| R909085479 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909150669 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154589 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Standard / special version | Special version | S |
