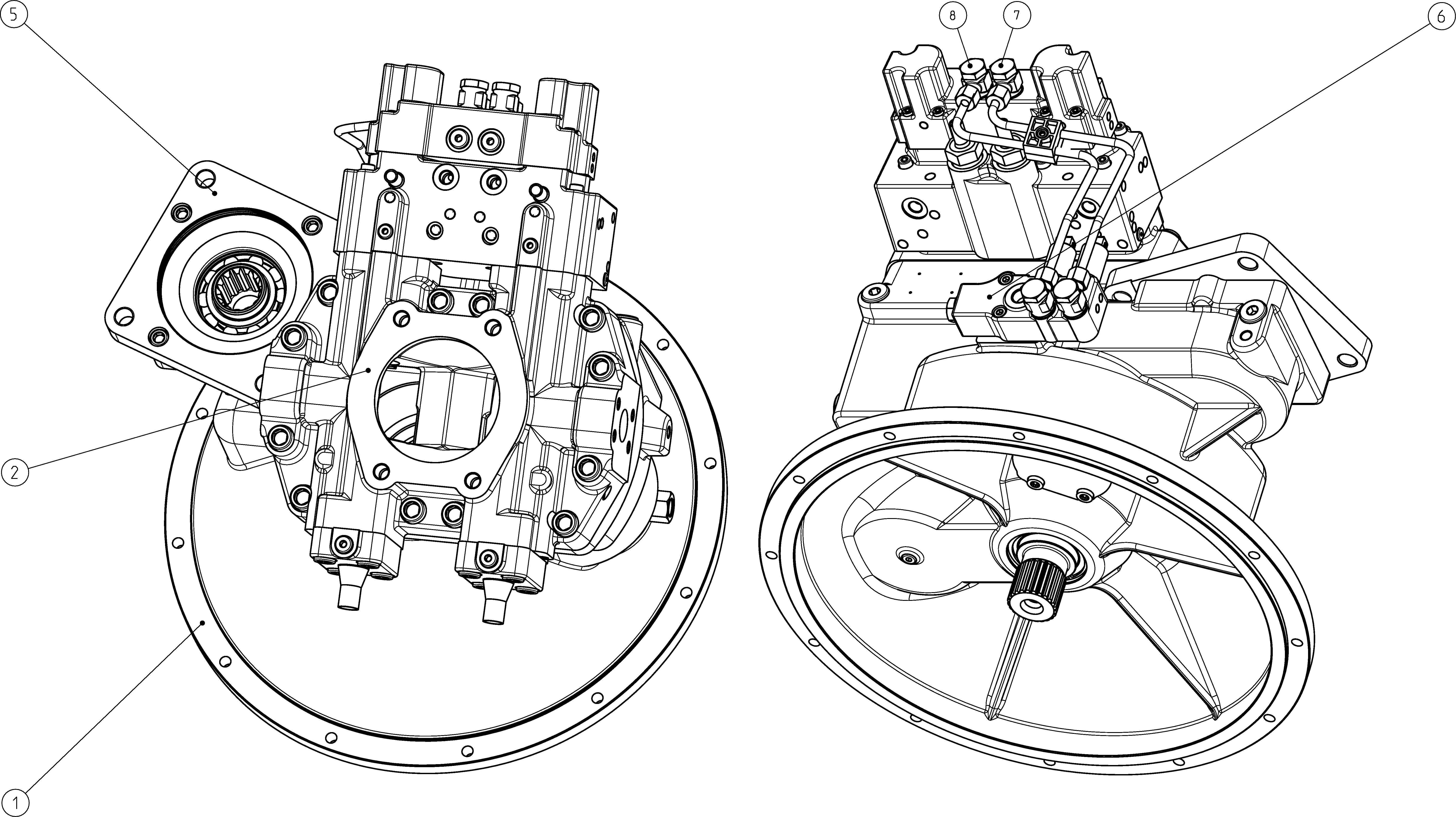

A8VO225LAXSX/72R1-NZN05F17X-S (R902251507)
CONNECTION PLATE (14130)

CONNECTION PLATE
(14130)


1

CONNECTION PLATE
(14166)


2

VALVE SPOOL
(12462)


3

COMPRESSION SPRING
(14167)


4

SCREW PLUG
(12464)


5

WASHER
(14168)


10

SOCKET HEAD CAP SCREW
(14169)


11

O-RING
(11092)


12

O-RING
(12467)


13

PRESSURE REDUCING VALVE
(14170)


14

DOUBLE BREAK-OFF PLUG
(18990)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
