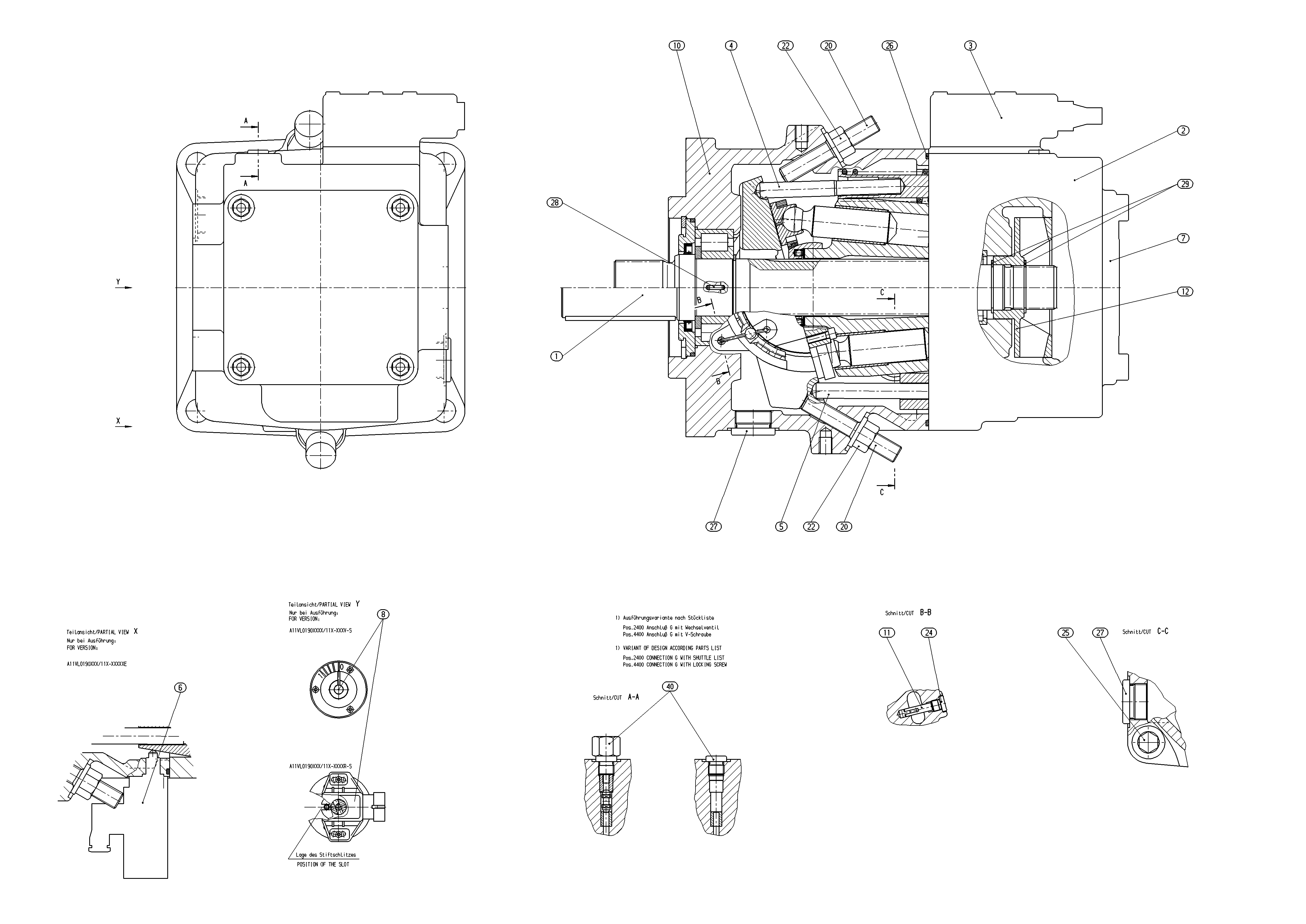

A11VO190DRS/11R-NSD12K02-S (R902154454)
CONTROL (87179)

CONTROL
(87179)


1

POSITIONING PISTON
(12614)


2

ADJUSTING ROD
(12615)


2

ADJUSTING ROD
(12616)


2

ADJUSTING ROD
(12617)


2

ADJUSTING ROD
(12618)


3

COMPRESSION SPRING
(12619)


4

LOCKING BOLT
(87180)


5

BUSHING
(12620)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
