AA10VO45FE1D/31R-PSC12K04-SO762 (R910988197)

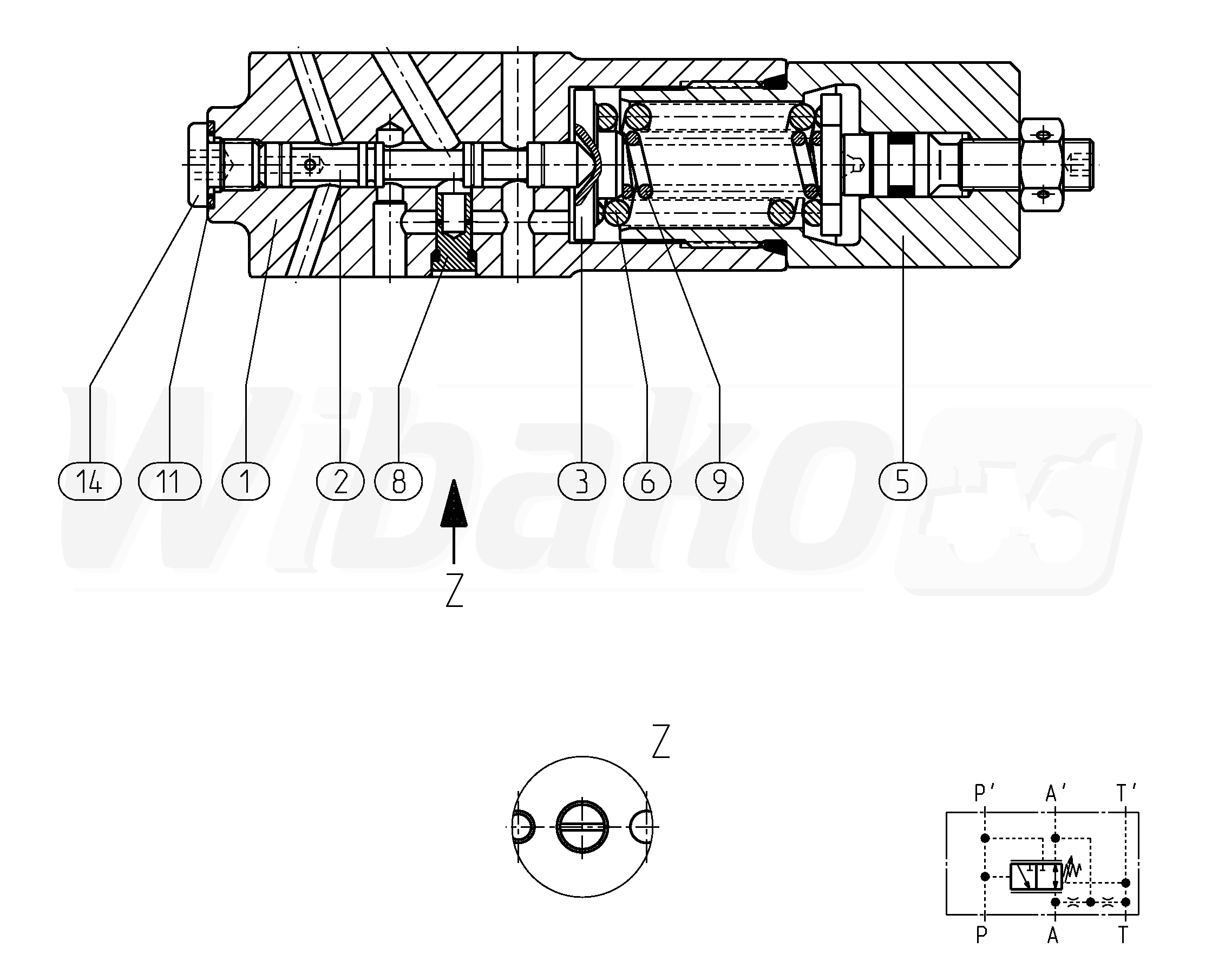

CONTROL VALVE (113412)

CONTROL VALVE
(113412)


1

VALVE HOUSING
(105373)


2

VALVE SPOOL
(13250)


3

SPRING DISK
(13246)


5

SERVO UNIT
(109291)

Group »


6

COMPRESSION SPRING
(13249)


8

ORIFICE
(11917)

Group »


9

COMPRESSION SPRING
(13251)


11

BONDED SEAL RING
(11921)


14

SCREW PLUG
(11918)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
