Unit · AXIAL-PISTON PUMP
AA10VO45+DFR/31R-PSC12K04-SO157R910920630
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45+DFR/31R-PSC12K04-SO157, material number R910920630. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O).
- Number
- R910920630
- Type code
- AA10VO45+DFR/31R-PSC12K04-SO157
- Group
- A10VO 45
- Edition
- 06/2020

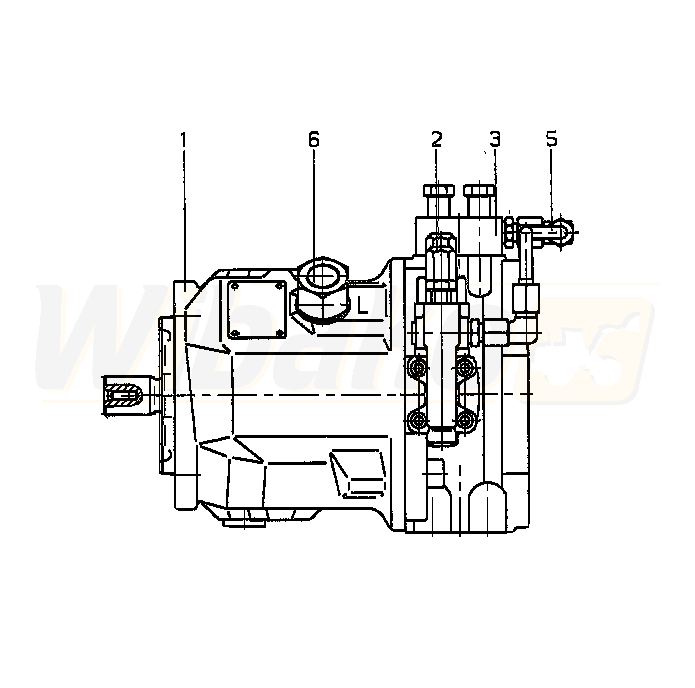

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910906455 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902453430 | CONTROL VALVE Assembly parts list →L | 1 | |
| 3 | R910920462 | ORIFICE FLANGE Assembly parts list →L | 1 | |
| 5 | R910916217 | PIPING PLAN Assembly parts list →L | 1 | |
| 6 | R910792772 | ADAPTER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
