Unit · AXIAL-PISTON PUMP
AHA4VSO250DP/30L-PZB25N00-SO585R902448149
Axial piston pump Bosch Rexroth series A4VSO, type code AHA4VSO250DP/30L-PZB25N00-SO585, material number R902448149. Nominal size: NG 250. Hydraulic fluid/version: high-speed version (H). Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Control device Information on controller selection: pressure controller for parallel operation (DP). Directions of rotation: viewed on drive shaft Counter-clockwise (L). Drive shafts: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Working port: SAE flange ports, B and S with 90° lateral 2nd pressure port B metric fastening thread offset opposite B, plugged with flange plate on delivery (25). Through drive: without through drive and auxiliary pump (N00). Special version no. 585.
- Number
- R902448149
- Type code
- AHA4VSO250DP/30L-PZB25N00-SO585
- Group
- A4VSO 250
- Edition
- 12/2019

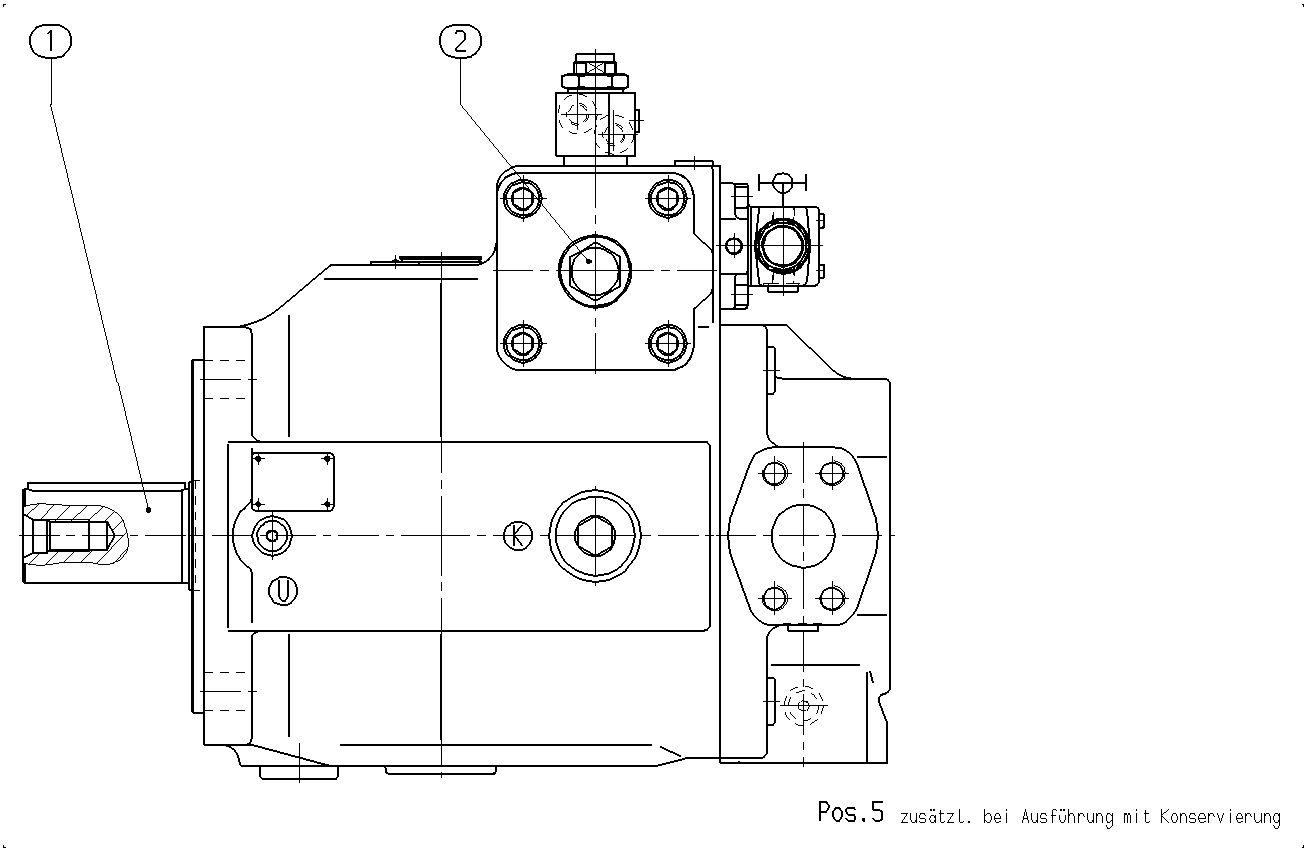

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902448103 | BASE UNIT Assembly parts list →L | 1 | ||
| — | REGULATOR Assembly parts list →L | 1 | ||
| 11 | R910915966 | PRESERVATION SET | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Hydraulic fluid/version | High-speed version | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 250 | 250 |
| Control device Information on controller selection | Pressure controller for parallel operation | DP |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft Counter-clockwise | L |
| Drive shafts | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Working port | SAE flange ports, B and S with 90° lateral 2nd pressure port B metric fastening thread offset opposite B, plugged with flange plate on delivery | 25 |
| Through drive | without through drive and auxiliary pump | N00 |
