Unit · ROTARY GROUP
TW A7V-SL1000/L5ZX -SO-KOLB.+SCHW.ANZ.R902402608

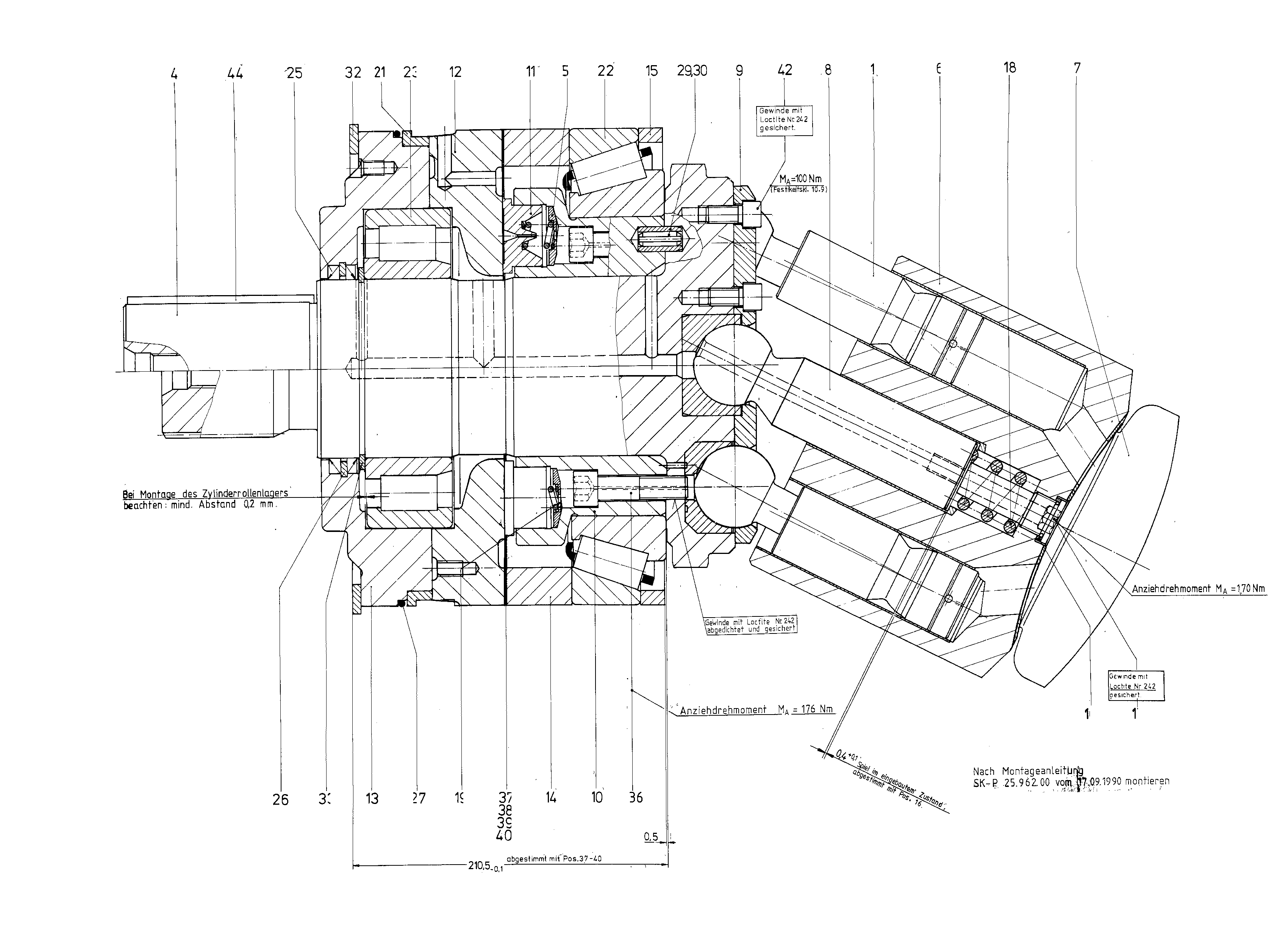

Rotary group Bosch Rexroth series A7V, type code TWA7V-SL1000/L5ZX-SO-KOLB.+SCHW.ANZ., material number R902402608.
- Number
- R902402608
- Type code
- TW A7V-SL1000/L5ZX -SO-KOLB.+SCHW.ANZ.
- Group
- A7VSL 1000
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910994577 | PISTON | 7 | ||
| R902511720 | DRIVE FLANGE | 1 | ||
| R910928715 | SPRING DISK | 7 | ||
| R910638048 | CYLINDER | 1 | ||
| R910964423 | CONTROL LENS Assembly parts list →L | 1 | ||
| R910795097 | THRUST JOURNAL | 1 | ||
| R910935251 | RETAINING PLATE | 1 | ||
| R910741892 | PAD SUPPORT WITH SEAL | 1 | ||
| R910741973 | PAD | 7 | ||
| R910742651 | SLIDING DISC | 1 | ||
| R910906659 | SEALING FLANGE | 1 | ||
| R910741965 | SPACER RING | 1 | ||
| R910741949 | RING | 1 | ||
| 16 | R910941875 | SHIM RING | 1 | |
| 17 | R910941832 | SPACER SCREW | 1 | |
| R910678759 | COMPRESSION SPRING | 1 | ||
| R910715247 | COMPRESSION SPRING | 7 | ||
| R910905445 | RING | 1 | ||
| R902650821 | TAPERED-ROLLER BEARING | 1 | ||
| R910742139 | CYL. ROLLER BEARING | 1 | ||
| R910702684 | SHAFT SEALING RINGD | 2 | ||
| R910188697 | RETAINING RING | 1 | ||
| R910187364 | O-RINGD | 1 | ||
| R910107018 | SLOTTED SPRING PIN | 1 | ||
| R910921207 | SLOTTED SPRING PIN | 1 | ||
| R910638196 | RETAINING RING | 1 | ||
| R910742147 | RETAINING RING | 1 | ||
| R910928716 | SCREW | 7 | ||
| R910638242 | SHIM RING | 1 | ||
| R910638234 | SHIM RING | 1 | ||
| R910638226 | SHIM RING | 2 | ||
| R913058575 | SOCKET HEAD CAP SCREW | 14 |
