Unit · BASE UNIT
G AA10VSO100 DFE /31R-VKC12K52 LRR910988049
Base unit Bosch Rexroth series A10VSO, type code GAA10VSO100DFE/31R-VKC12K52LR, material number R910988049. Nominal size: NG 100. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52).
- Number
- R910988049
- Type code
- G AA10VSO100 DFE /31R-VKC12K52 LR
- Group
- A10VSO 100
- Edition
- 06/2020

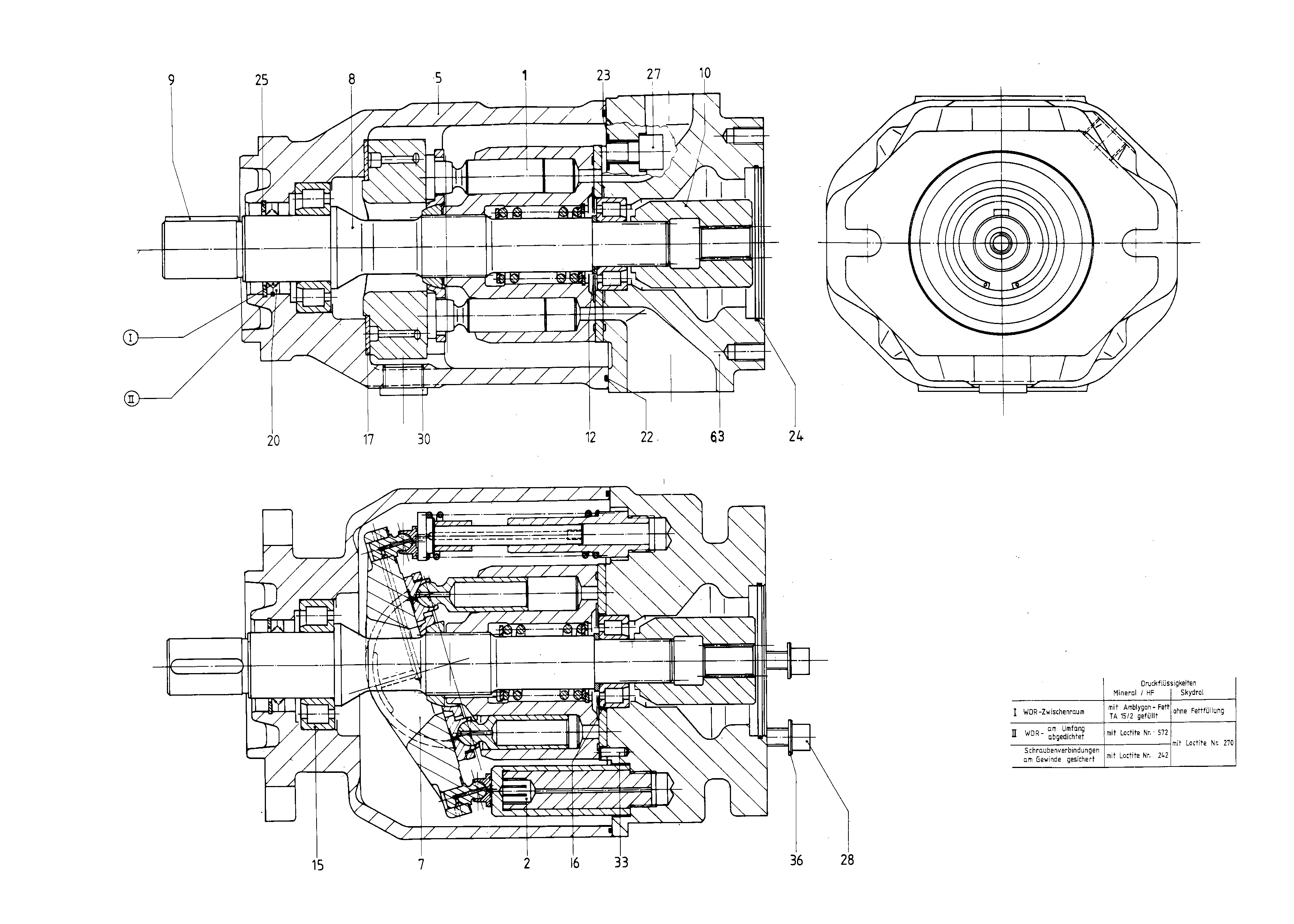

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910985877 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910921786 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910988365 | PUMP HOUSING | 1 | ||
| R910995905 | CONNECTION PLATE | 1 | ||
| R902465983 | SWASH PLATE | 1 | ||
| R910987700 | DRIVE SHAFT | 1 | ||
| R910935395 | PARALLEL KEY | 1 | ||
| R902436201 | SPLINED COUPLING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910987869 | STOP RING | 1 | |
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910912756 | O-RINGD | 1 | ||
| R913050578 | R-RINGD | 4 | ||
| R910357049 | O-RINGD | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967351 | SCREW PLUGD | 1 | ||
| 31 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
