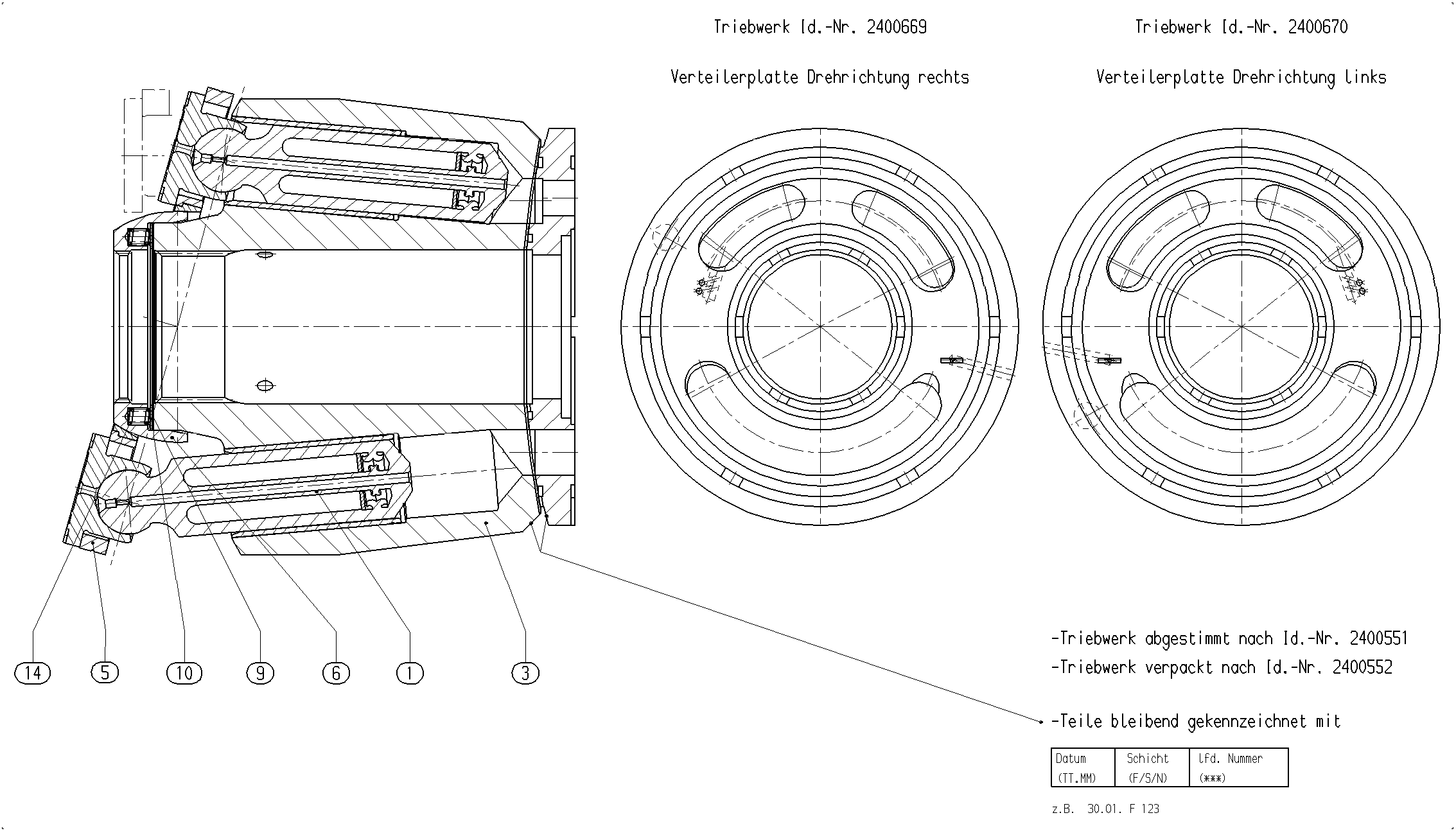

Unit · ROTARY GROUP
TWA11VO260LHYDR.TEIL*G*R902434477
Rotary group Bosch Rexroth series A11VO, type code TWA11VO260LHYDR.TEIL*G*, material number R902434477. Nominal size: NG 26. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Mounting flange: SAE J744 ‒ 4-hole (D). Swivel angle indicator: with electric swivel angle sensor (R).
- Number
- R902434477
- Type code
- TWA11VO260LHYDR.TEIL*G*
- Group
- A11VO 260
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902436846 | PISTON PAD | 9 | ||
| R902400662 | CYLINDER Assembly parts list →L | 1 | ||
| R902400559 | RETAINING PLATE | 1 | ||
| R902400655 | RETAINING BALL | 1 | ||
| R902400656 | SHIM RING | 2 | ||
| R902400657 | SHIM RING | 2 | ||
| R902400658 | COMPRESSION SPRING | 20 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 26 | 26 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Swivel angle indicator | With electric swivel angle sensor | R |
