Unit · ZAWÓR REGULACYJNY ZVKDFR1A10
ZAWÓR REGULACYJNY ZVKDFR1A1012202800
Hydraulic unit Bosch Rexroth, type code ZAWÓRREGULACYJNYZVKDFR1A10, material number 12202800.
- Number
- 12202800
- Type code
- ZAWÓR REGULACYJNY ZVKDFR1A10
- Group
- ZAWÓR REGULACYJNY ZVKDFR1A10
- Edition
- 04/2020

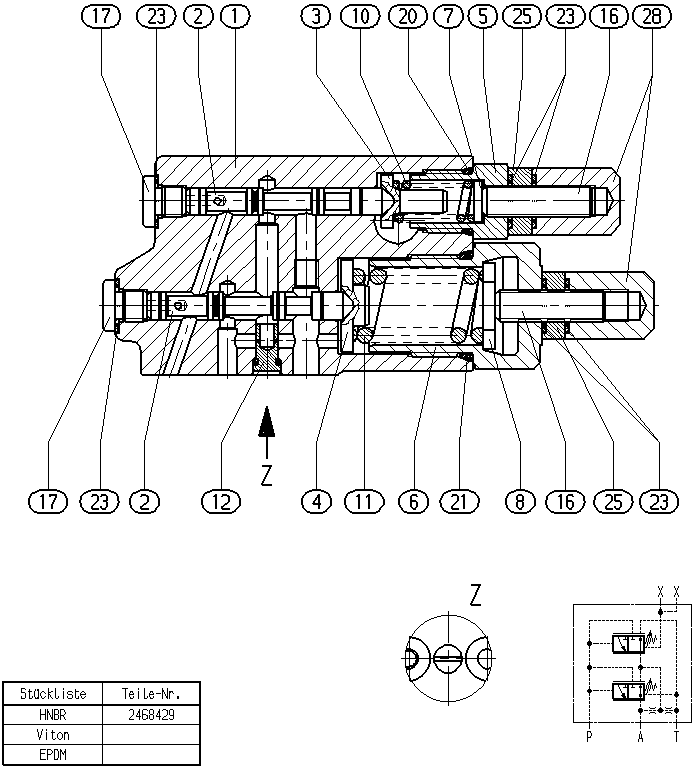

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420351 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOL | 2 | ||
| R910920595 | SPRING DISK | 1 | ||
| R910707023 | SPRING DISK | 1 | ||
| R910935862 | SCREW PLUG | 1 | ||
| R902417464 | SCREW PLUG | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902417465 | WASHER | 1 | ||
| R910920596 | COMPRESSION SPRING | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R902468436 | ORIFICE Assembly parts list →L | 1 | ||
| R910913807 | SETSCREW | 2 | ||
| R910933812 | SCREW PLUG | 2 | ||
| R902650291 | O-RINGD | 1 | ||
| R902650295 | O-RINGD | 1 | ||
| R902650292 | BONDED SEAL RINGD | 6 | ||
| R910913806 | NUT | 2 | ||
| R910913805 | CAP NUT | 2 |
