Unit · A8VO55
A8VO551751704

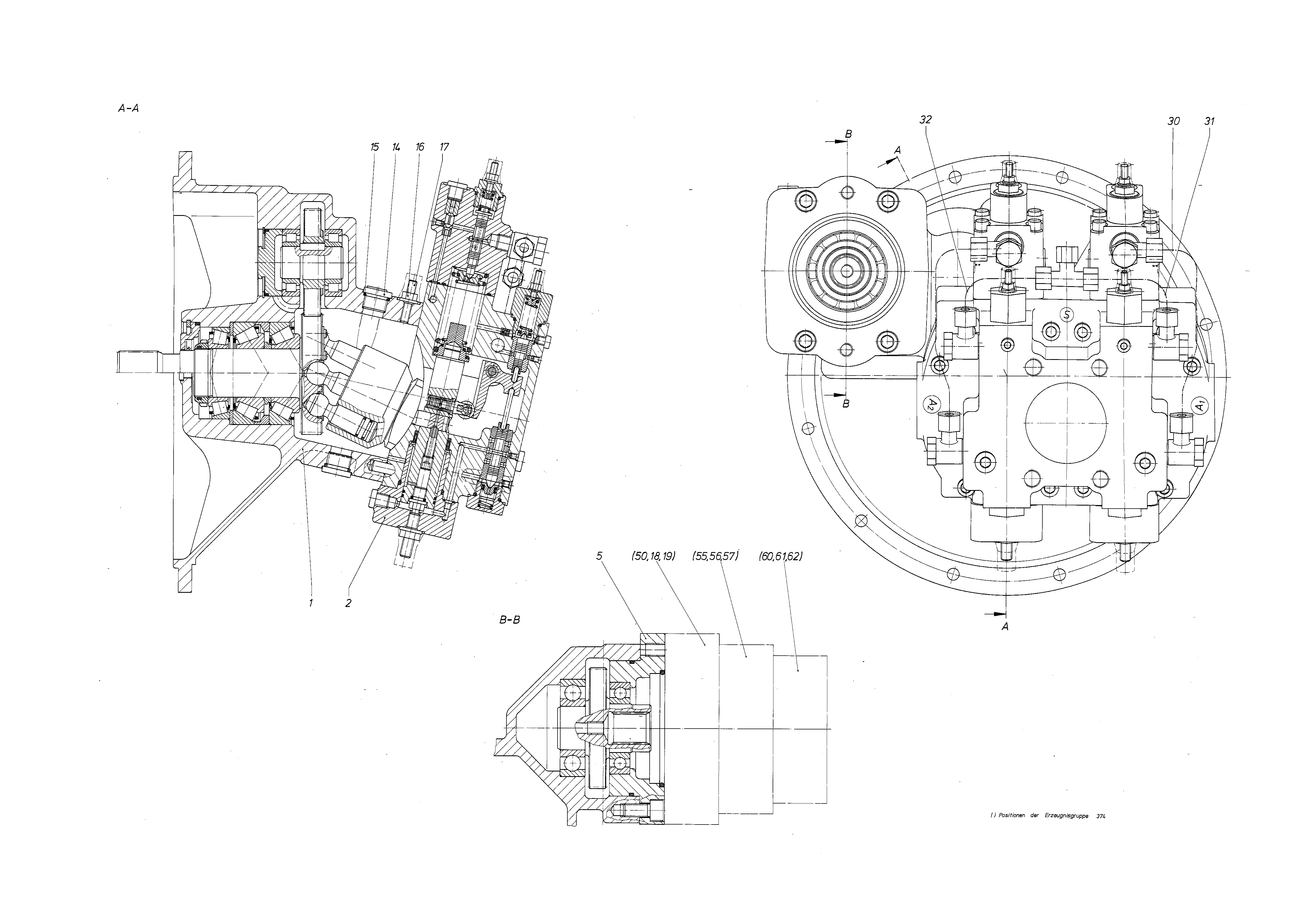

Axial piston pump Bosch Rexroth series A8VO, type code A8VO55, material number 1751704. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O).
- Number
- 1751704
- Type code
- A8VO55
- Group
- A8VO 55
- Edition
- 03/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418511 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909427537 | CONTROL Assembly parts list →L | 1 | ||
| R909421673 | TOOTHED WHEEL | 1 | ||
| 6 | R902099415 | FLANGE | 1 | |
| 10 | R909152647 | O-RINGD | 1 | |
| 11 | R909085477 | DEEP-GROOVE BALL BEARING | 1 | |
| 12 | R909150668 | DEEP-GROOVE BALL BEARING | 1 | |
| 13 | R909083086 | SOCKET HEAD CAP SCREW | 4 | |
| R909083225 | SCREW PLUG | 2 | ||
| R909083758 | O-RINGD | 2 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909084531 | SETSCREW | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430409 | WASHER | 2 | ||
| 20 | R909085365 | O-RINGD | 1 | |
| R909428603 | HYDRAULIC LINE Assembly parts list →L | 2 | ||
| R909428604 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909428605 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 98 | R902221336 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
