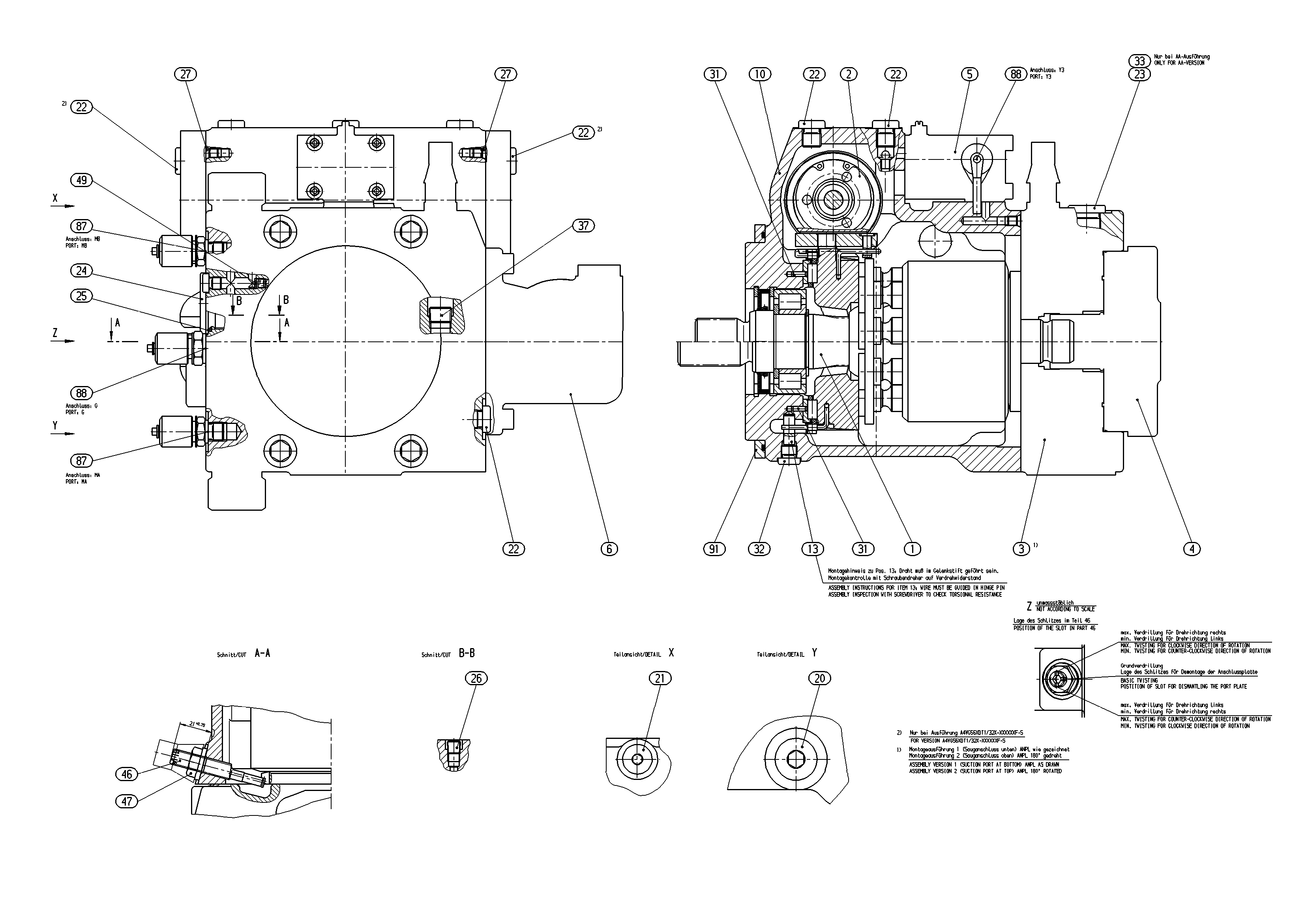

Unit · A4VG56
A4VG5620163956
Axial piston pump Bosch Rexroth series A4VG, type code A4VG56, material number 20163956. Nominal size: NG 56. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 530 bar (A4V). Operating mode: pump, closed circuit (G).
- Number
- 20163956
- Type code
- A4VG56
- Group
- A4VG 56
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902087508 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902048057 | CONTROL Assembly parts list →L | 1 | ||
| R909609355 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606385 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902037561 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R902033737 | FILTER Assembly parts list →L | 1 | ||
| R902195715 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R909830659 | TEST POINT | 2 | ||
| R902601703 | TEST POINT | 2 | ||
| R902198707 | FLANGE Assembly parts list →L | 1 | ||
| 98 | R902166076 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 530 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 56 | 56 |
