Unit · BVD20F28
BVD20F2822381949
Hydraulic unit Bosch Rexroth, type code BVD20F28, material number 22381949. Valve type: counterbalance valve, double-acting (BVD). Size: flow, maximum qv max 220 l/min (20). Control range: start/end of opening counterbalance spool 7 to 30 bar (travel drive) (F). Working port: 20 107, 125 107, 115 (28).
- Number
- 22381949
- Type code
- BVD20F28
- Group
- BVD20F28
- Edition
- 02/2020

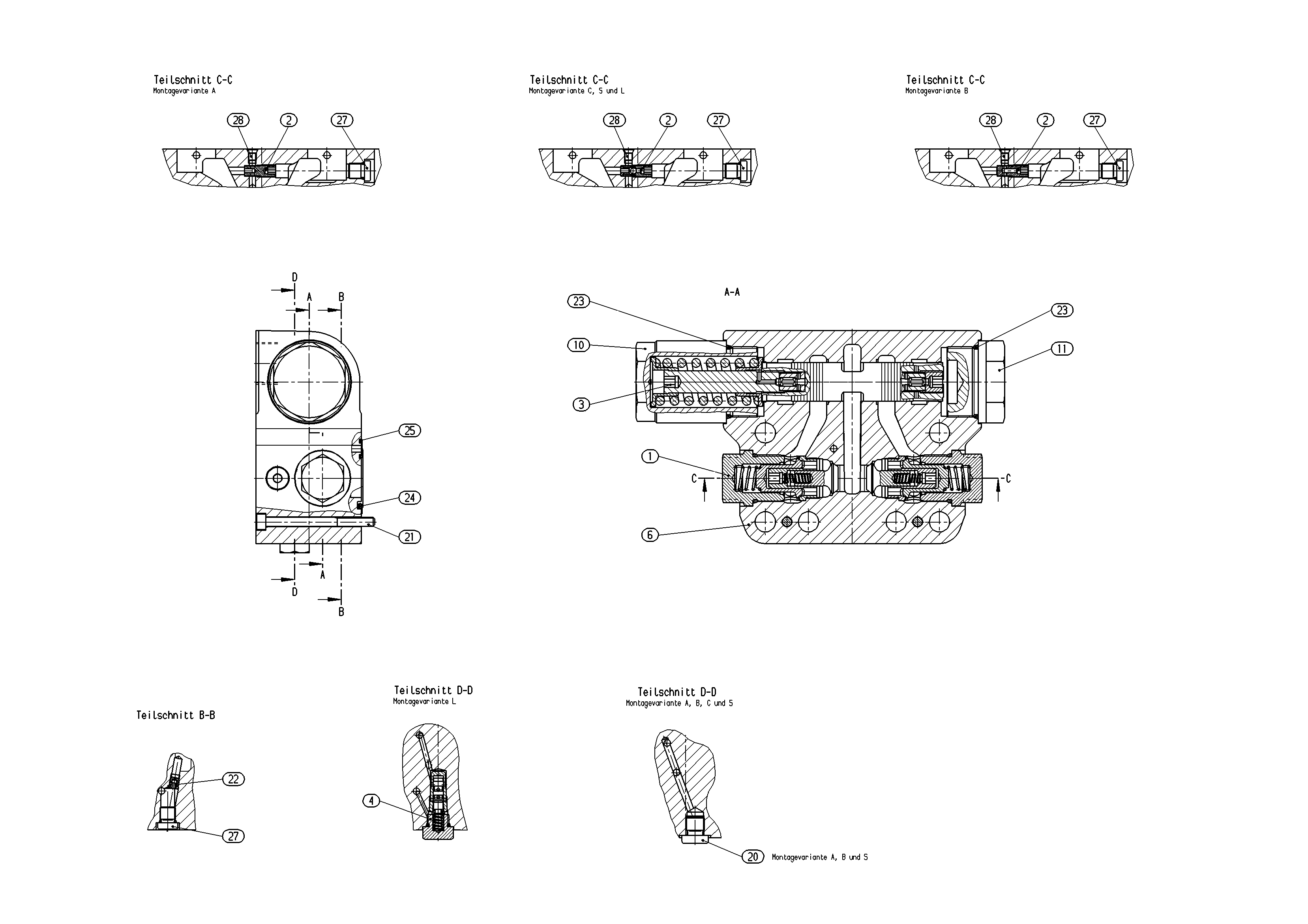

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902050683 | VALVE Assembly parts list →L | 2 | ||
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902050784 | BRAKE PISTON Assembly parts list →L | 1 | ||
| R902082116 | HOUSING | 1 | ||
| R902044180 | SCREW PLUG | 1 | ||
| R902044181 | SCREW PLUG | 1 | ||
| R909156650 | SCREW PLUG | 1 | ||
| R909085700 | SOCKET HEAD CAP SCREW | 2 | ||
| R909831347 | PLUG | 1 | ||
| R909152377 | O-RING | 2 | ||
| R909085578 | O-RING | 2 | ||
| R902601483 | O-RING | 2 | ||
| R902601874 | SCREW PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 98 | R902095625 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Valve type | Counterbalance valve, double-acting | BVD |
| Size | Flow, maximum qv max 220 l/min | 20 |
| Control range | Start/end of opening counterbalance spool 7 to 30 bar (travel drive) | F |
| Working port | 20 107, 125 107, 115 | 28 |
