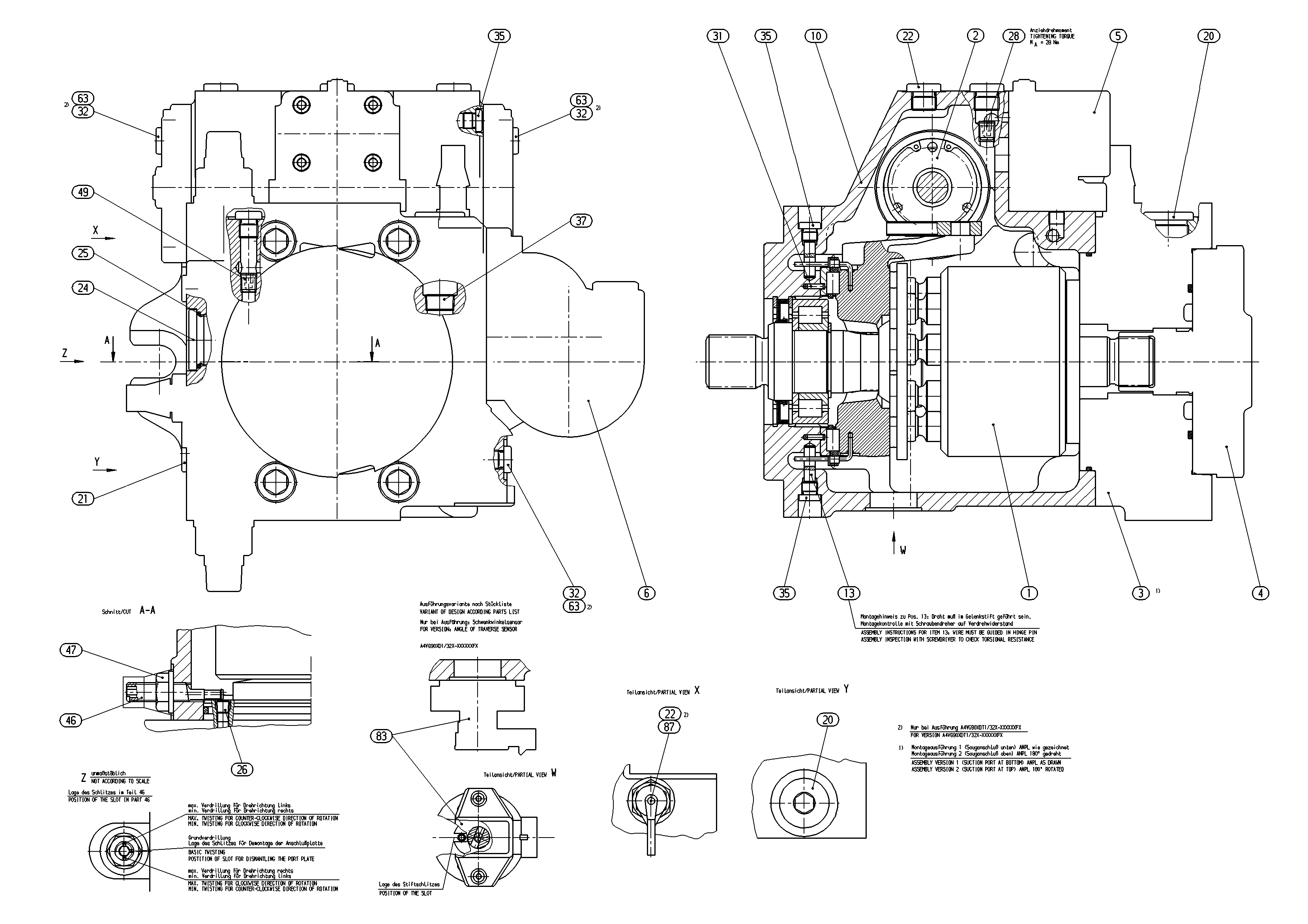

Unit · A4VG90
A4VG9023980648
Axial piston pump Bosch Rexroth series A4VG, type code A4VG90, material number 23980648. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 530 bar (A4V). Operating mode: pump, closed circuit (G).
- Number
- 23980648
- Type code
- A4VG90
- Group
- A4VG 90
- Edition
- 01/2019
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902130086 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902117395 | CONTROL Assembly parts list →L | 1 | ||
| R902099877 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902099740 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902115017 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902099738 | FILTER Assembly parts list →L | 1 | ||
| R902095118 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909156989 | SCREW PLUG | 2 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R909156864 | SCREW PLUGD | 3 | ||
| R909083228 | SCREW PLUG | 1 | ||
| — | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909426704 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909156650 | SCREW PLUGD | 3 | ||
| R909156649 | SCREW PLUGD | 4 | ||
| R909087913 | SCREW PLUG | 1 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909426706 | NOZZLE | 1 | ||
| R902115367 | SWIVEL ANGLE SENSOR Assembly parts list →L | 1 | ||
| R909831747 | MEASURING CONNECTION | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 530 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
