Unit · A6VM200
A6VM2005717096

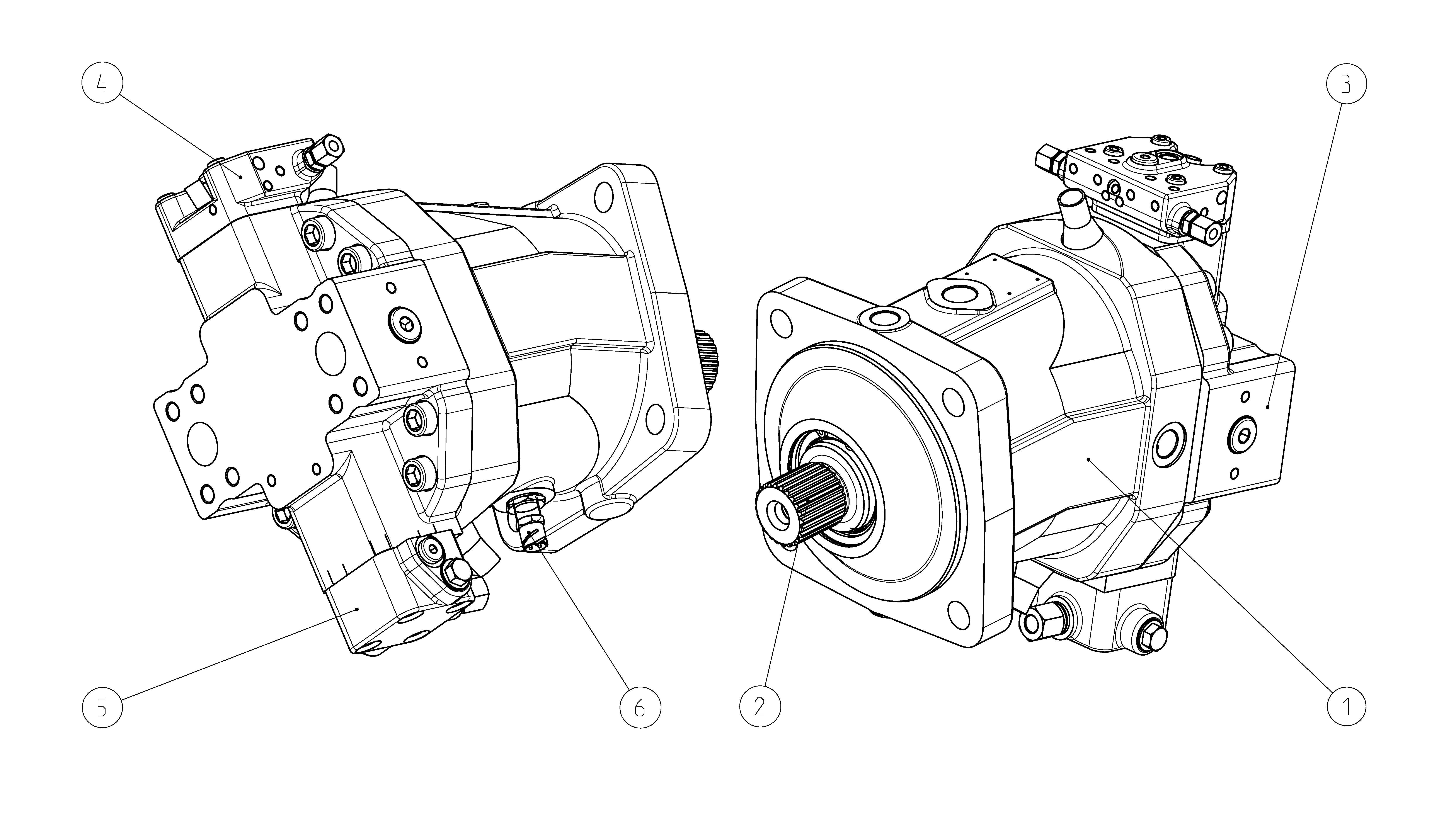

Axial piston motor Bosch Rexroth series A6VM, type code A6VM200, material number 5717096. Nominal size: NG 200. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M).
- Number
- 5717096
- Type code
- A6VM200
- Group
- A6VM 200
- Edition
- 03/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902219329 | HOUSING Assembly parts list →L | 1 | ||
| R909604703 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902139864 | COVER PLATE Assembly parts list →L | 1 | ||
| R902004182 | CONTROL PART Assembly parts list →L | 1 | ||
| R902219330 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R909831297 | RECORDER | 1 | ||
| 98 | R902002306 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 200 | 200 |
