Unit · A4VG40
A4VG408904024
Axial piston pump Bosch Rexroth series A4VG, type code A4VG40, material number 8904024. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 530 bar (A4V). Operating mode: pump, closed circuit (G).
- Number
- 8904024
- Type code
- A4VG40
- Group
- A4VG 40
- Edition
- 04/2020

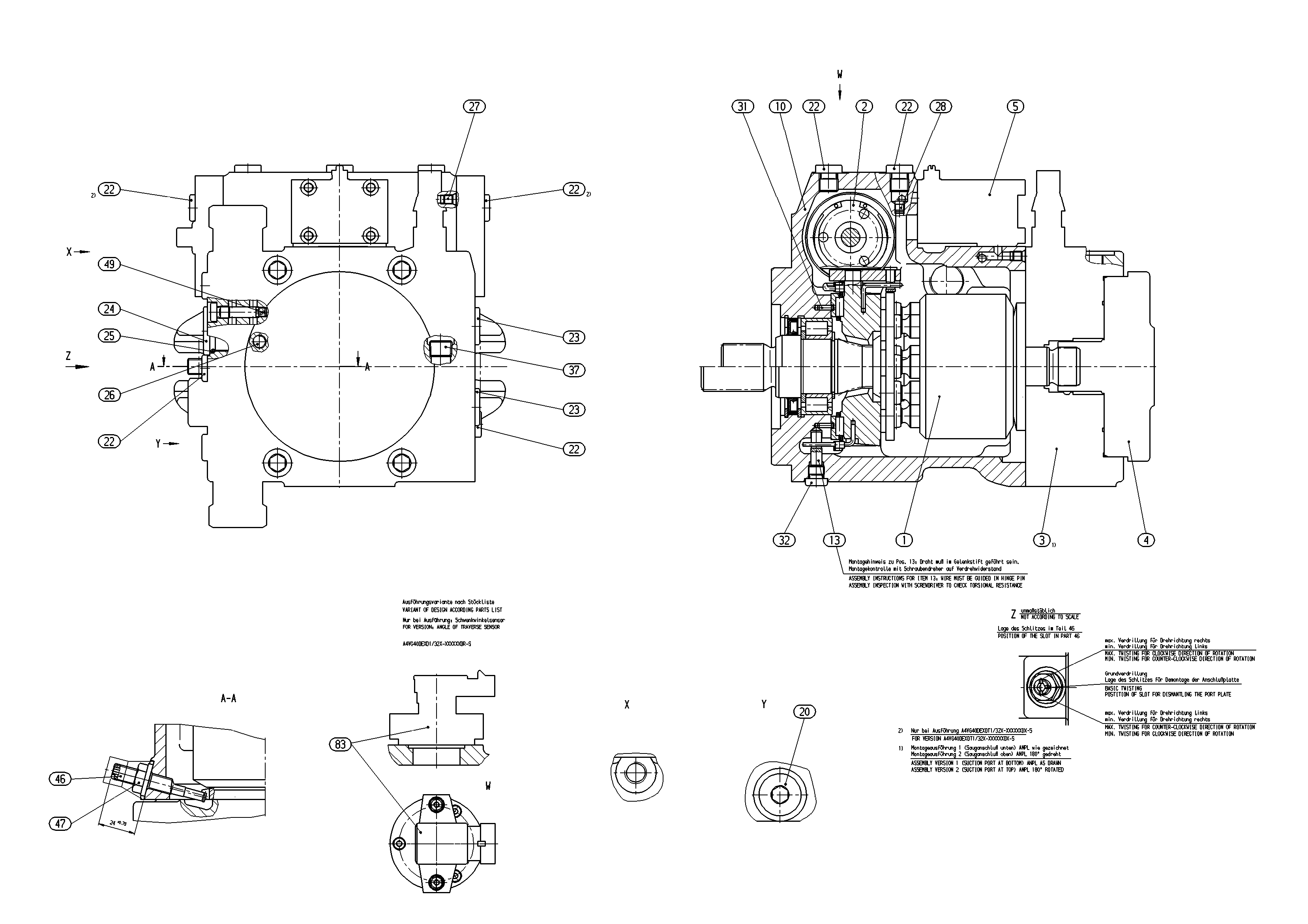

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902084744 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902071439 | CONTROL Assembly parts list →L | 1 | ||
| R909609715 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606688 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902085588 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902071428 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 7 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902190711 | THROTTLE VALVE Assembly parts list →L | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R902076593 | SWIVEL ANGLE SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 530 bar | A4V |
| Operating mode | Pump, closed circuit | G |
