Unit · A6VM107
A6VM10790939209

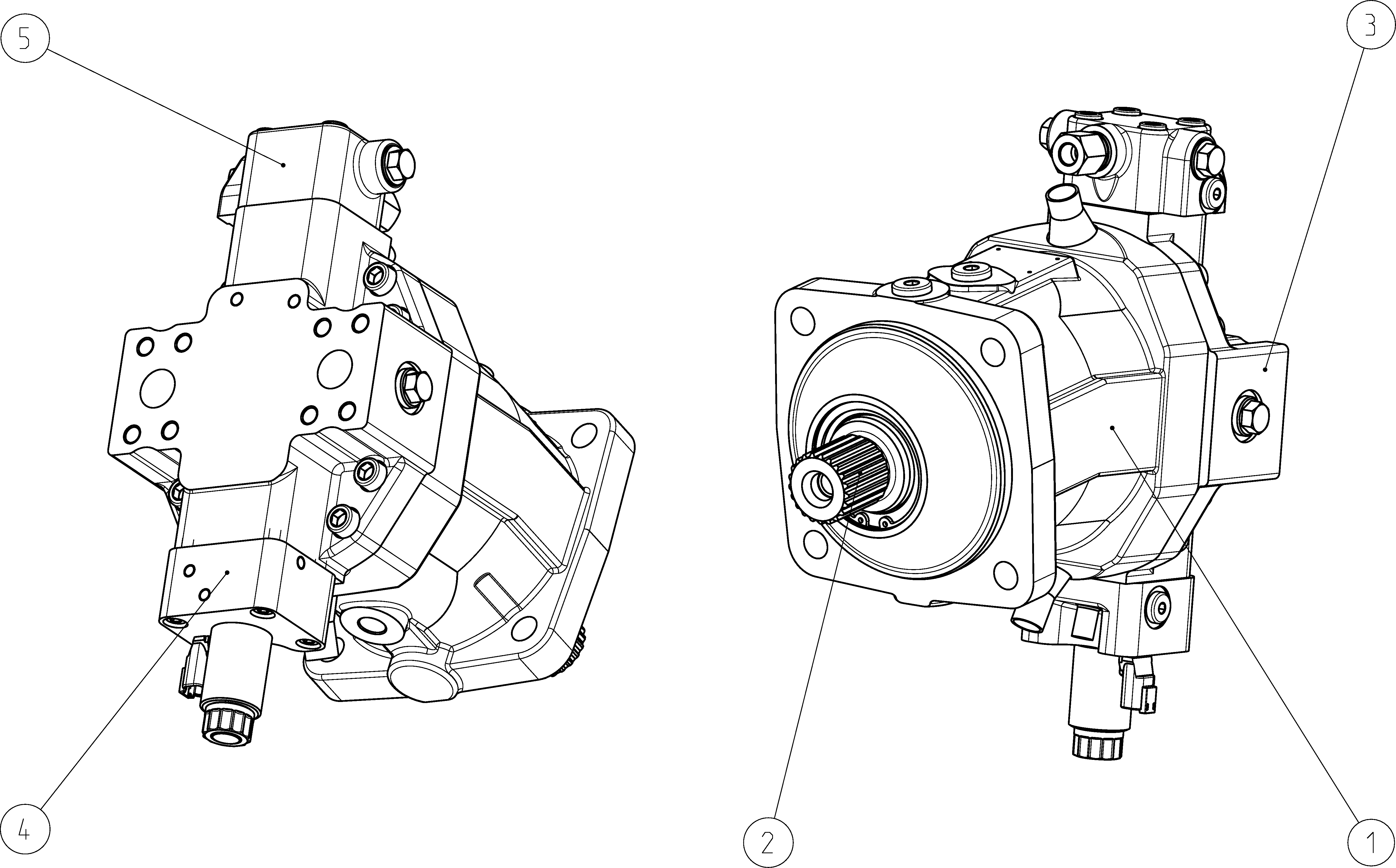

Axial piston motor Bosch Rexroth series A6VM, type code A6VM107, material number 90939209. Nominal size: NG 107. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M).
- Number
- 90939209
- Type code
- A6VM107
- Group
- A6VM 107
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902216071 | HOUSING Assembly parts list →L | 1 | ||
| R909604146 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902209602 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139658 | CONTROL PART Assembly parts list →L | 1 | ||
| R902209603 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 98 | R902002300 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
