Unit · VANE PUMP
PV7-1X/100-118RE07MC3-16R900511215
Axial piston pump Bosch Rexroth series PV7, type code PV7-1X/100-118RE07MC3-16, material number R900511215. Type: vane pump, variable, pilot-operated (PV7). Frame size (BG) and size (NG): BG 100 ‒ NG 118 cm (100-118). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: cylindrical drive shaft according to ISO 3019-2 with output (E). Line connections: frame sizes 63, 100 Suction and pressure port: SAE flange connection according to ISO 6162-1 (07). Seal material: NBR seals, suitable for HLP mineral oil according to DIN 51524 (M). Controller type: pressure controller (C). Controller option: lockable (3). Zero stroke pressure: 20 ‒ 160 bar (16).
- Number
- R900511215
- Type code
- PV7-1X/100-118RE07MC3-16
- Group
- VANE PUMP
- Edition
- 09/2026

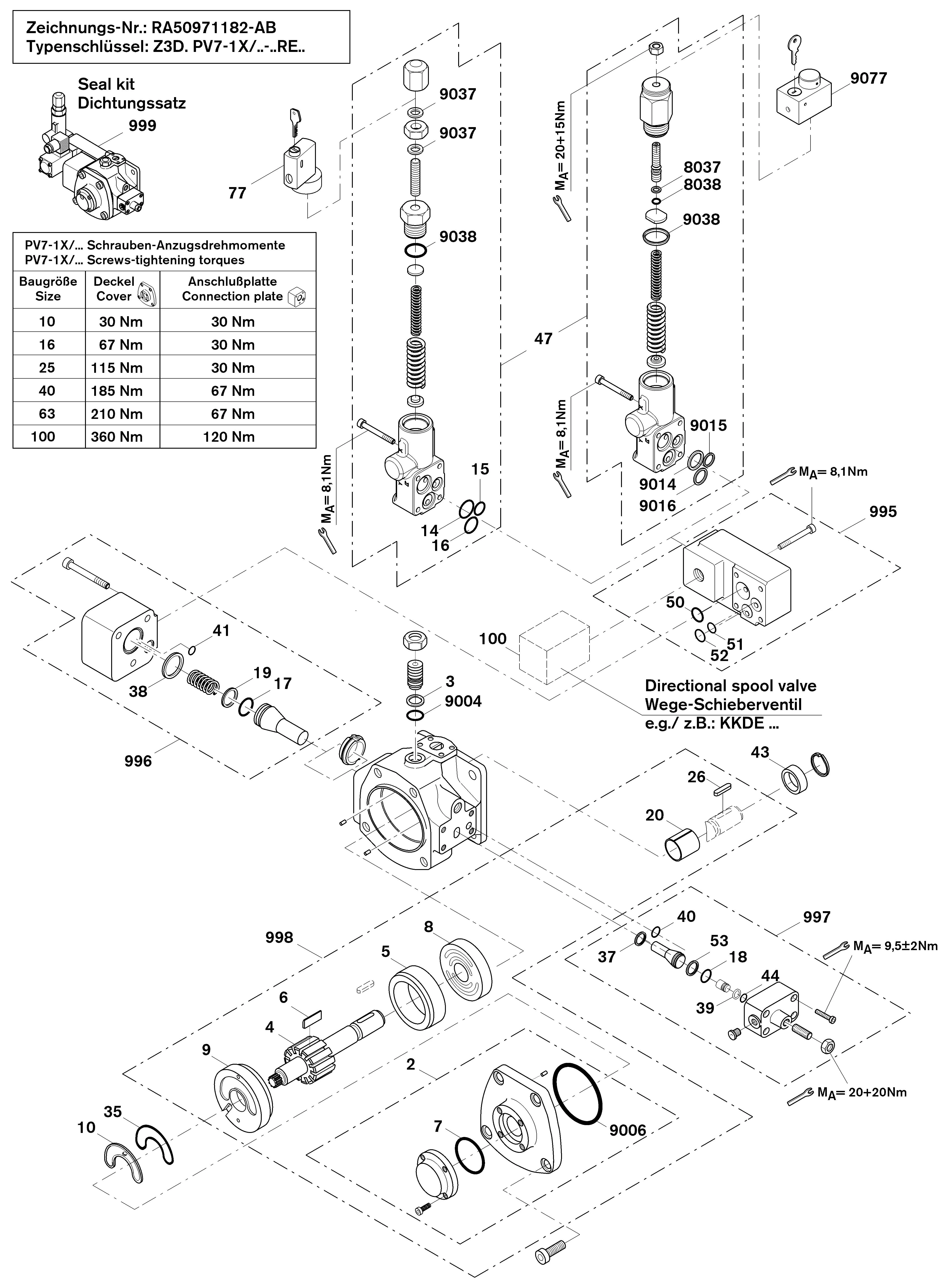

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| — | REGULATOR V7-1A/...C0-16 BG | |||
| R901183126 | SERVO UNIT SERVO UNIT V7-1A/.. SCHLOSS BG | 1 | ||
| R900891350 | SPARE PART SPARE PART V7-1X/100 ANSCHLUSSPL | 1 | ||
| R900891342 | SPARE PART SPARE PART V7-1X/100 FUEHRUNG | 1 | ||
| R900542986 | REPAIR KIT REPAIR KIT V7-1X/100-118RE Assembly parts list →L | 1 | ||
| R900891699 | SEAL KIT SEAL KIT PV7-1X/100M/KL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Type | Vane pump, variable, pilot-operated | PV7 |
| Series | Series 1A to 1Z (1A to 1Z have unchanged installation and connection dimensions) | 1X |
| Frame size (BG) and size (NG) | BG 100 ‒ NG 118 cm | 100-118 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Cylindrical drive shaft according to ISO 3019-2 with output | E |
| Line connections | Frame sizes 63, 100 Suction and pressure port: SAE flange connection according to ISO 6162-1 | 07 |
| Seal material | NBR seals, suitable for HLP mineral oil according to DIN 51524 | M |
| Controller type | Pressure controller | C |
| Controller option | Lockable | 3 |
| Zero stroke pressure | 20 ‒ 160 bar | 16 |
