Unit · VANE PUMP
PV7-1X/63-94RE07MC0-08R900560659
Axial piston pump Bosch Rexroth series PV7, type code PV7-1X/63-94RE07MC0-08, material number R900560659. Type: vane pump, variable, pilot-operated (PV7). Frame size (BG) and size (NG): BG 63 ‒ NG 94 cm (63-94). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: cylindrical drive shaft according to ISO 3019-2 with output (E). Line connections: frame sizes 63, 100 Suction and pressure port: SAE flange connection according to ISO 6162-1 (07). Seal material: NBR seals, suitable for HLP mineral oil according to DIN 51524 (M). Controller type: pressure controller (C). Controller option: standard (0). Zero stroke pressure: 20 ‒ 80 bar (08).
- Number
- R900560659
- Type code
- PV7-1X/63-94RE07MC0-08
- Group
- VANE PUMP
- Edition
- 01/2019

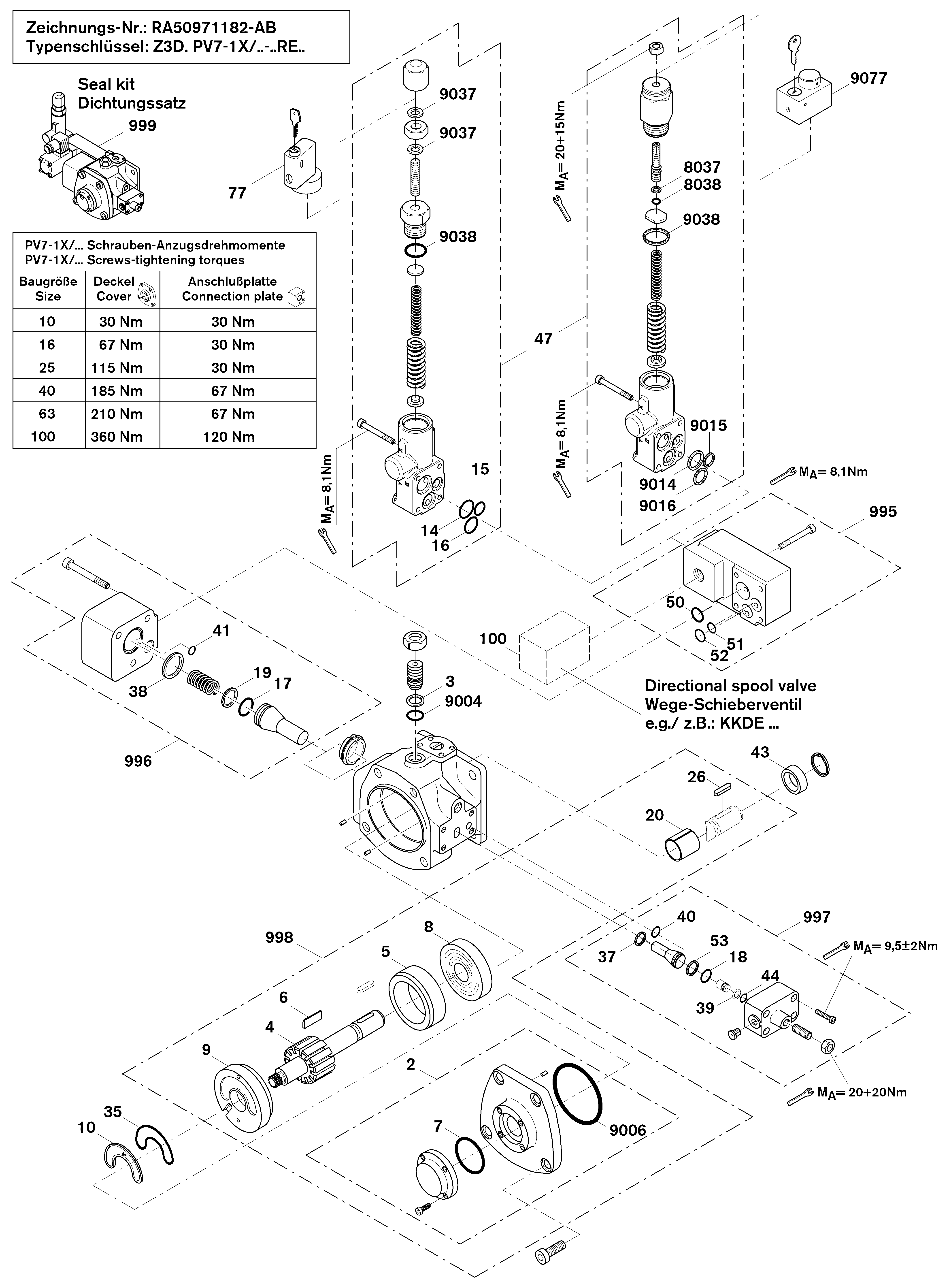

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R901182736 | REGULATOR REGULATORV7-1A/...C0-10BG | 1 | ||
| R900891349 | SPARE PART SPAREPARTV7-1X/40/63ANSCHLUSS | 1 | ||
| R900891341 | SPARE PART SPAREPARTV7-1X/40/63FUEHRUNG | 1 | ||
| R900544501 | REPAIR KIT REPAIRKITV7-1X/63-94RE Assembly parts list →L | 1 | ||
| R900891700 | SEAL KIT SEALKITPV7-1X/63M/KL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Type | Vane pump, variable, pilot-operated | PV7 |
| Series | Series 1A to 1Z (1A to 1Z have unchanged installation and connection dimensions) | 1X |
| Frame size (BG) and size (NG) | BG 63 ‒ NG 94 cm | 63-94 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Cylindrical drive shaft according to ISO 3019-2 with output | E |
| Line connections | Frame sizes 63, 100 Suction and pressure port: SAE flange connection according to ISO 6162-1 | 07 |
| Seal material | NBR seals, suitable for HLP mineral oil according to DIN 51524 | M |
| Controller type | Pressure controller | C |
| Controller option | Standard | 0 |
| Zero stroke pressure | 20 ‒ 80 bar | 08 |
