Unit · AXIAL-PISTON PUMP
A10VSO28DFE1/3XR-PSA12K52R900909242
Axial piston pump Bosch Rexroth series A10VSO, type code A10VSO28DFE1/3XR-PSA12K52, material number R900909242. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52).
- Number
- R900909242
- Type code
- A10VSO28DFE1/3XR-PSA12K52
- Group
- A10VSO 28
- Edition
- 06/2020

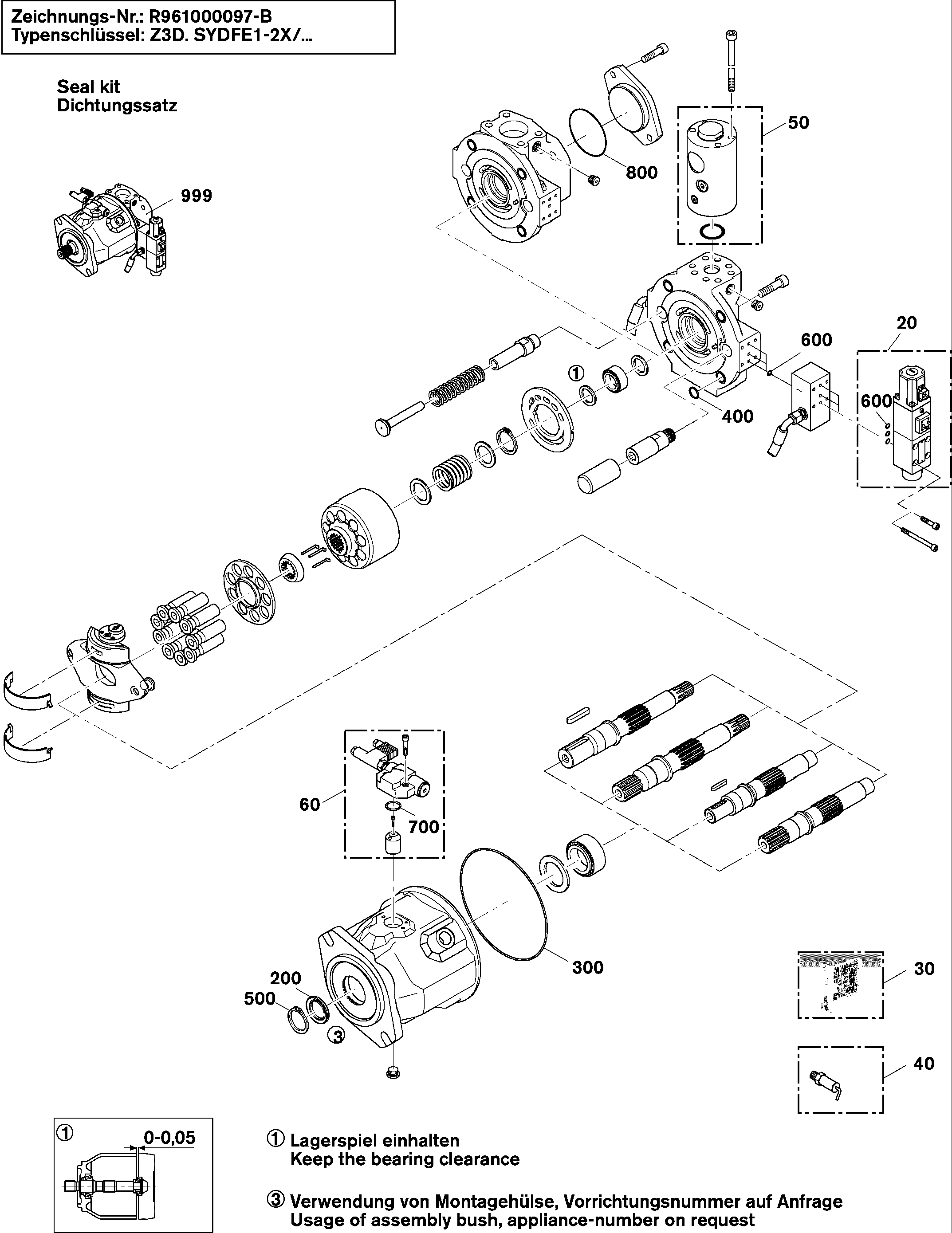

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 10 | — | AXIAL-PISTON PUMP | 1 | |
| — | MODULE | 1 | ||
| 51 | — | SOCKET HEAD CAP SCREW | 4 | |
| 81 | — | NAMEPLATE | 1 | |
| 82 | — | BLIND RIVET | 2 | |
| 86 | — | LIFTING EYE BOLT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
