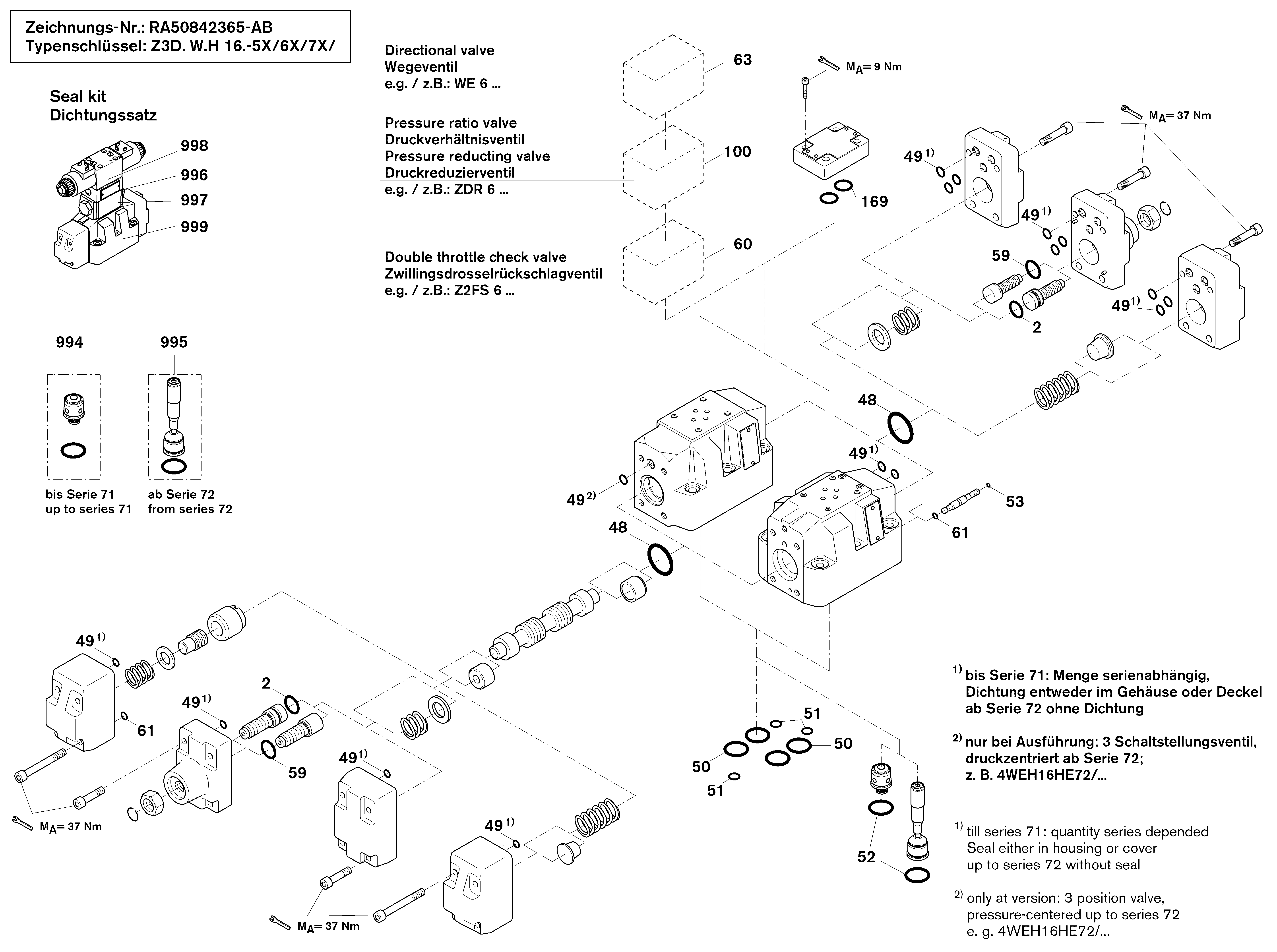

Unit · DIRECTIONAL SPOOL VALVE
4WEH16Q7X/6EG24N9EK4/B10R900961583
Hydraulic unit Bosch Rexroth, type code 4WEH16Q7X/6EG24N9EK4/B10, material number R900961583.
- Number
- R900961583
- Type code
- 4WEH16Q7X/6EG24N9EK4/B10
- Group
- DIRECTIONAL SPOOL VALVE
- Edition
- 09/2018
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R900548271 | DIRECTIONAL SPOOL VALVE 4WE6J6X/EG24N9K4/B10 Assembly parts list →L | 1 | ||
| R900357573 | SEAL KIT SEALKITWE6.6X/E Assembly parts list →L | 1 | ||
| R900306345 | SEAL KIT SEALKITWH16.5X/6X/7X/ Assembly parts list →L | 1 |
