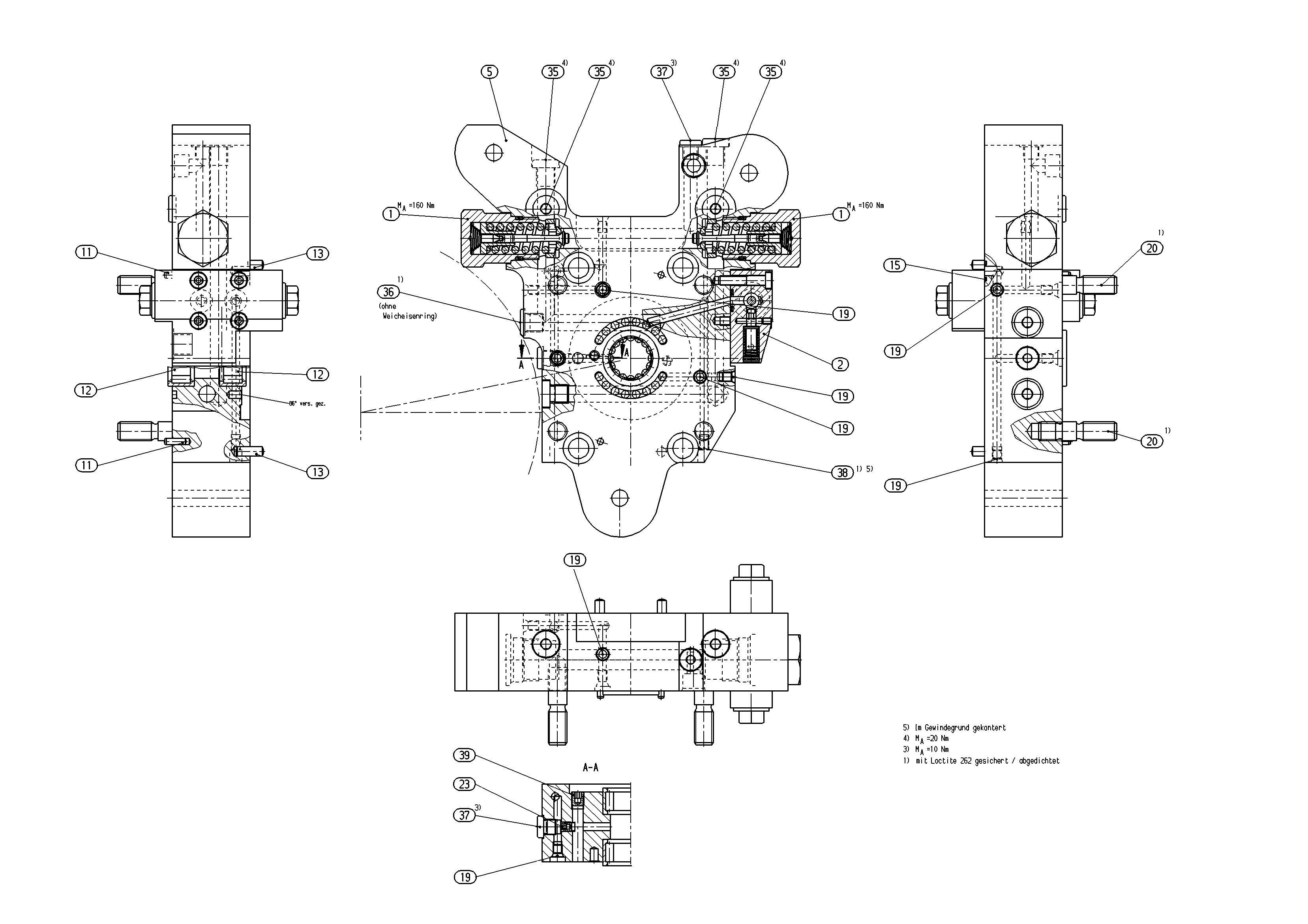

Unit · CONNECTION PLATE
ANPL,A4VG28+A4FM28+MW123113.R902001208
Connection plate Bosch Rexroth series A4VG, type code ANPL,A4VG28+A4FM28+MW123113., material number R902001208.
- Number
- R902001208
- Type code
- ANPL,A4VG28+A4FM28+MW123113.
- Group
- A4VG 28
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902001326 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902001368 | CONNECTION PLATE | 1 | ||
| R909087694 | STRAIGHT PIN | 2 | ||
| R909153245 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909085709 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909157491 | STUD | 4 | ||
| R909156494 | NOZZLE | 1 | ||
| R902601767 | SCREW PLUGD | 6 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909084519 | SETSCREW | 1 | ||
| R909831348 | PLUG | 1 |
