Unit · PUMP TRANSMISSION
A4VG125EP2D1/X+A4FM125/XR902001259
Pump transmission Bosch Rexroth series A4VG, type code A4VG125EP2D1/X+A4FM125/X, material number R902001259. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D).
- Number
- R902001259
- Type code
- A4VG125EP2D1/X+A4FM125/X
- Group
- A4VG 125
- Edition
- 03/2020

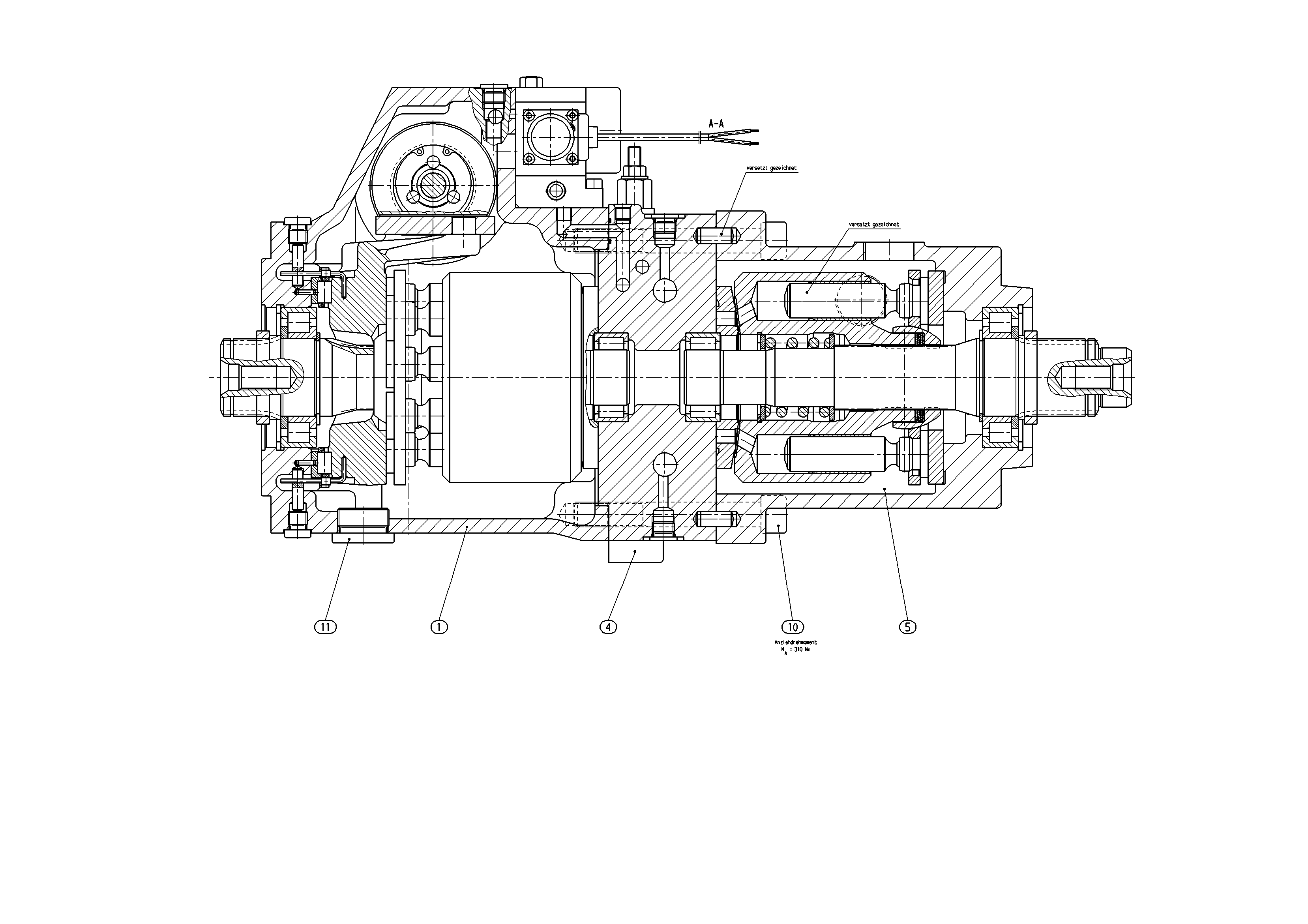

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902001268 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902001260 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| 5 | R902001271 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| R909153751 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909153861 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
