Unit · AXIAL-PISTON MOTOR
A4FM40/32W-X-SR902001285
Axial piston motor Bosch Rexroth series A4FM, type code A4FM40/32W-X-S, material number R902001285. Nominal size: NG 40. Axial piston unit: swashplate design, fixed (A4F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft (W).
- Number
- R902001285
- Type code
- A4FM40/32W-X-S
- Group
- A4FM 40
- Edition
- 05/2020

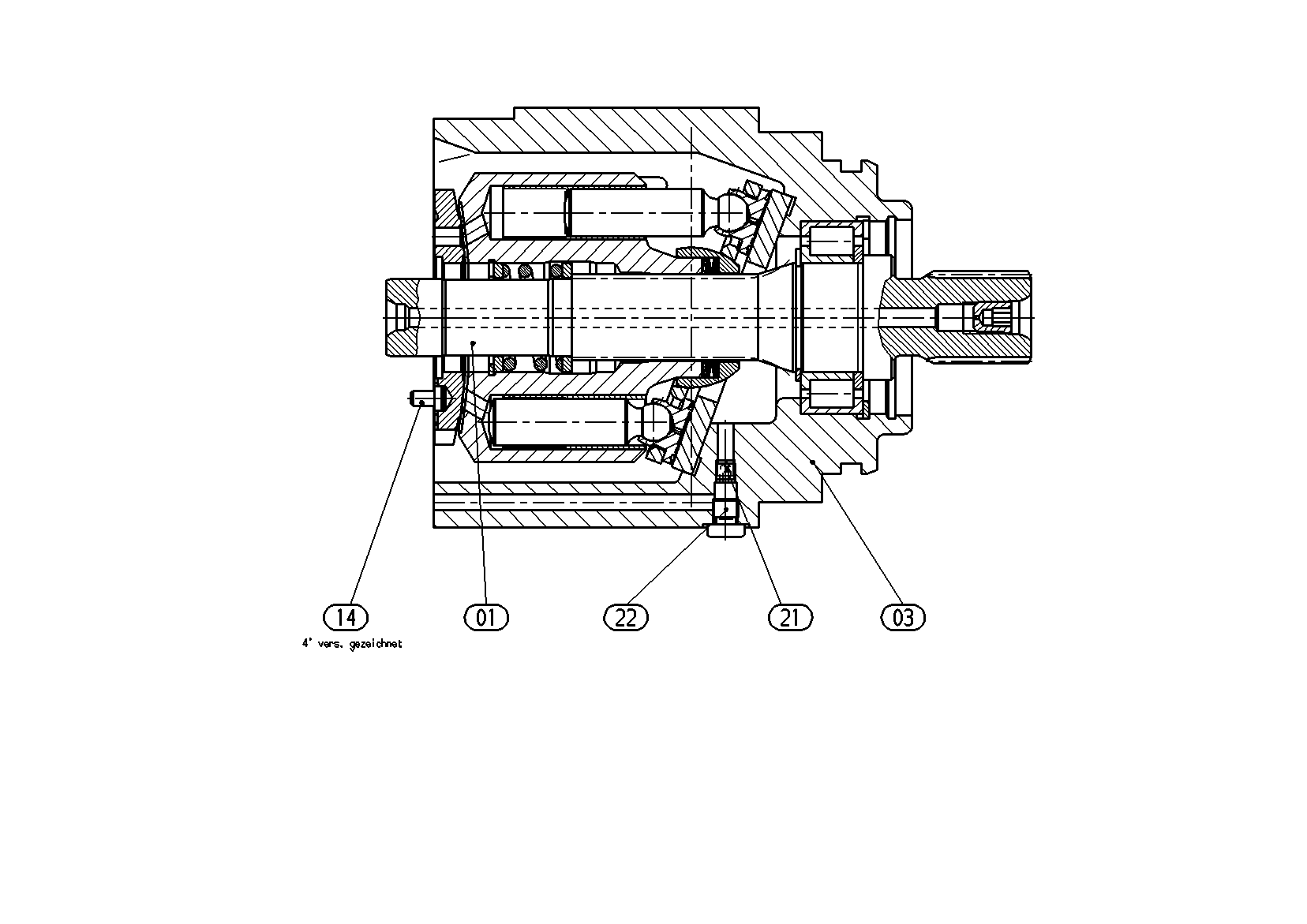

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902046711 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 3 | R902086179 | HOUSING | 1 | |
| R909405732 | POITIONING PIN | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R902601930 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed | A4F |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 40 | 40 |
| Direction of rotation | Viewed on drive shaft | W |
