Unit · AXIAL-PISTON MOTOR
A2FM16/61W-S FUER A4VG/X+A2FM/X-HM8-R902001494
Axial piston motor Bosch Rexroth series A2FM, type code A2FM16/61W-SFUERA4VG/X+A2FM/X-HM8-, material number R902001494. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Speed sensors: speed sensor DSA mounted (V).
- Number
- R902001494
- Type code
- A2FM16/61W-S FUER A4VG/X+A2FM/X-HM8-
- Group
- A2FM 16
- Edition
- 06/2020

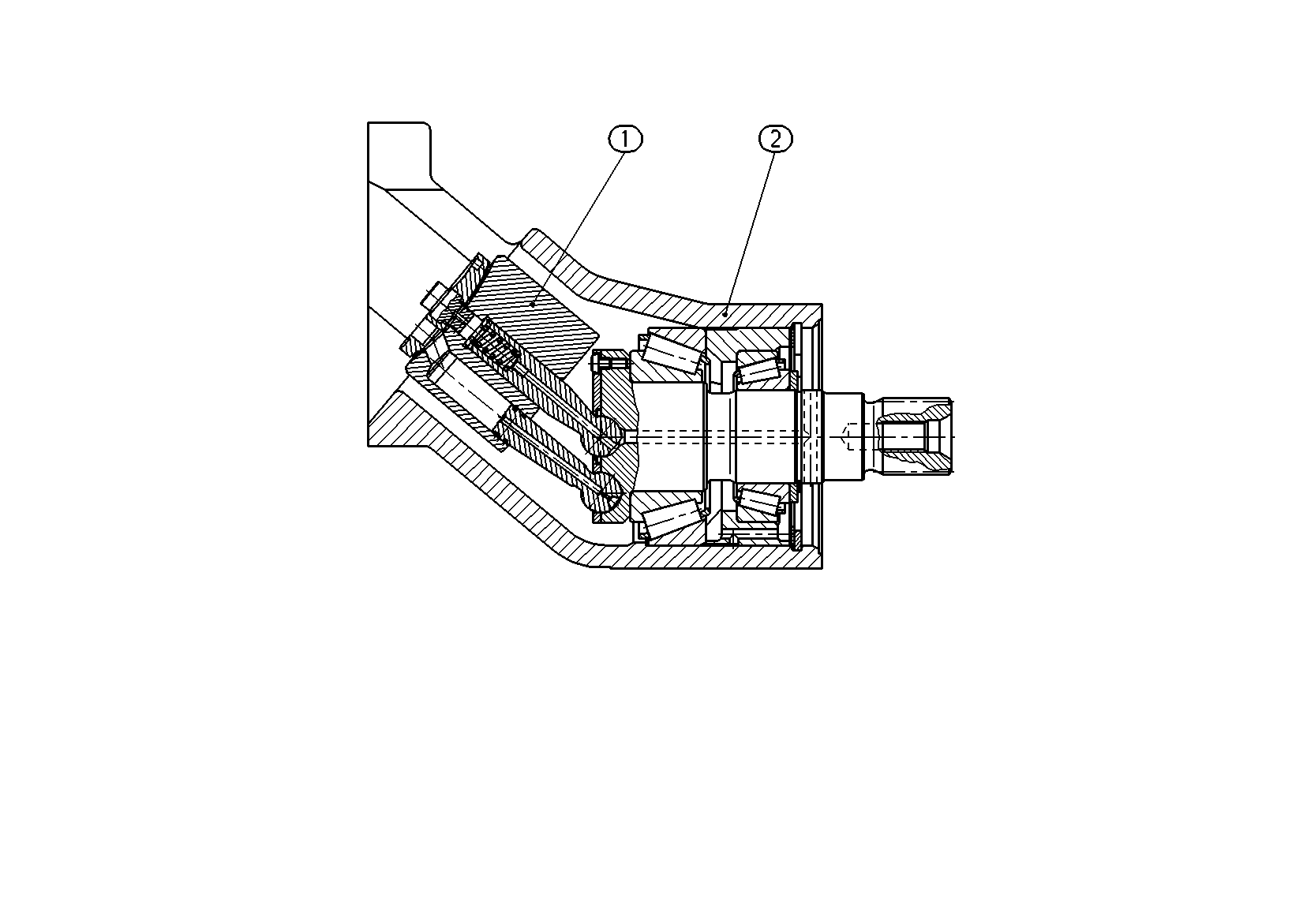

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902001493 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R902001188 | HOUSING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Speed sensors | Speed sensor DSA mounted | V |
