Unit · AXIAL-PISTON PUMP
KVA7VO107EP2/63R-MEK64R902004102
Axial piston pump Bosch Rexroth series A7VO, type code KVA7VO107EP2/63R-MEK64, material number R902004102. Nominal size: NG 107. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Control device: proportional control electrical Positive control U = 24 V (EP2). Direction of rotation: viewed on drive shaft (R).
- Number
- R902004102
- Type code
- KVA7VO107EP2/63R-MEK64
- Group
- A7VO 107
- Edition
- 06/2020

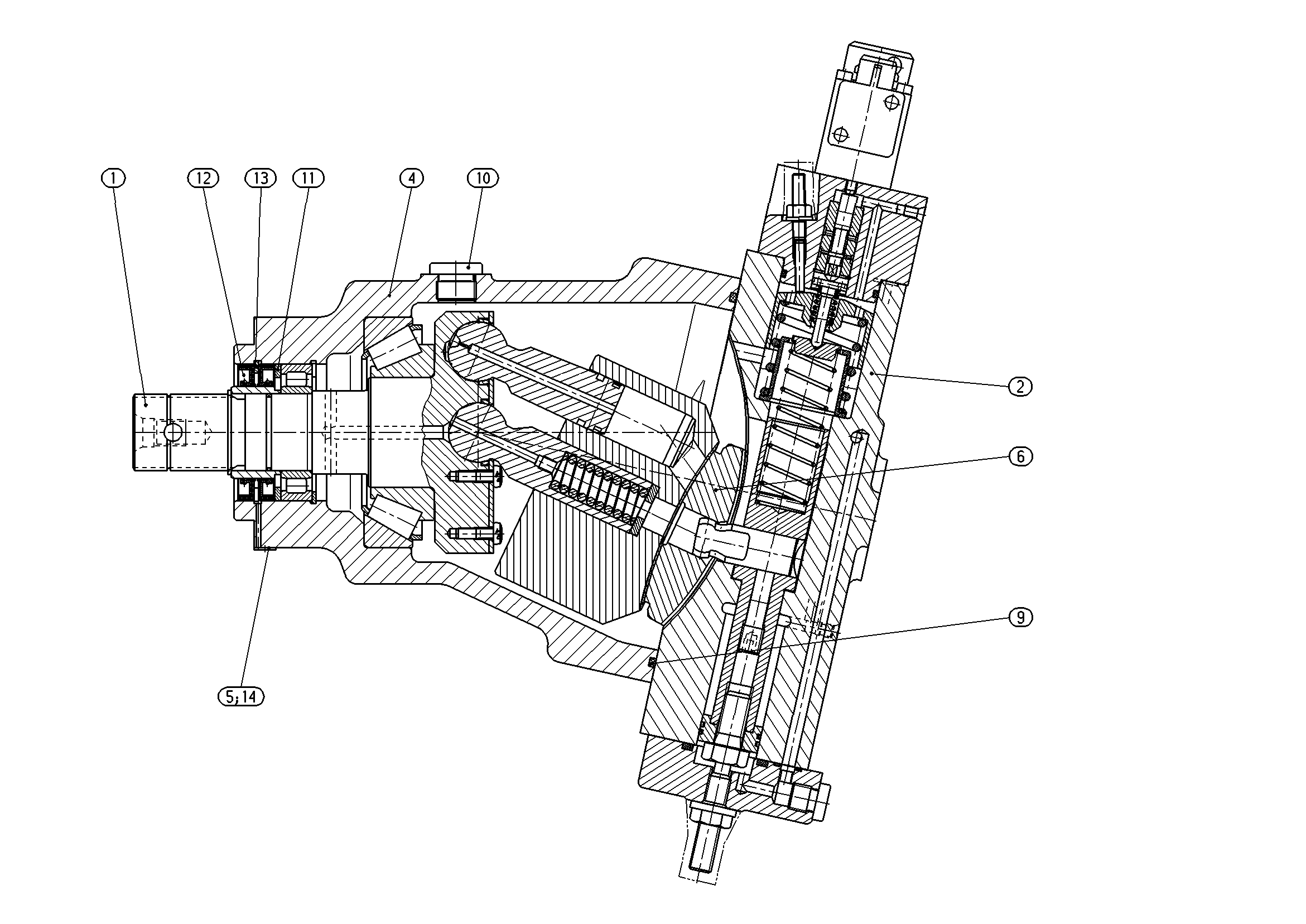

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902004064 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902004103 | CONTROL Assembly parts list →L | 1 | ||
| R902033042 | HOUSING | 1 | ||
| 5 | R909921950 | SHEET METAL COVER | 1 | |
| R909650453 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| 9 | R909156591 | O-RINGD | 1 | |
| R909156651 | SCREW PLUG | 1 | ||
| 11 | R909087079 | SUPPORTING DISCD | 1 | |
| R909832131 | ROTARY SHAFT LIP SEALD | 2 | ||
| R909083408 | RETAINING RING | 2 | ||
| 14 | R909830911 | BLIND RIVETD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 107 | 107 |
| Control device | Proportional control electrical Positive control U = 24 V | EP2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft | R |
