Unit · FILTERING PLATE
FILTERINGPLATEKOMP.AA4VG125/180R902006413
Axial piston pump Bosch Rexroth series A4VG, type code FILTERINGPLATEKOMP.AA4VG125/180, material number R902006413.
- Number
- R902006413
- Type code
- FILTERINGPLATEKOMP.AA4VG125/180
- Group
- A4VG 125
- Edition
- 03/2020

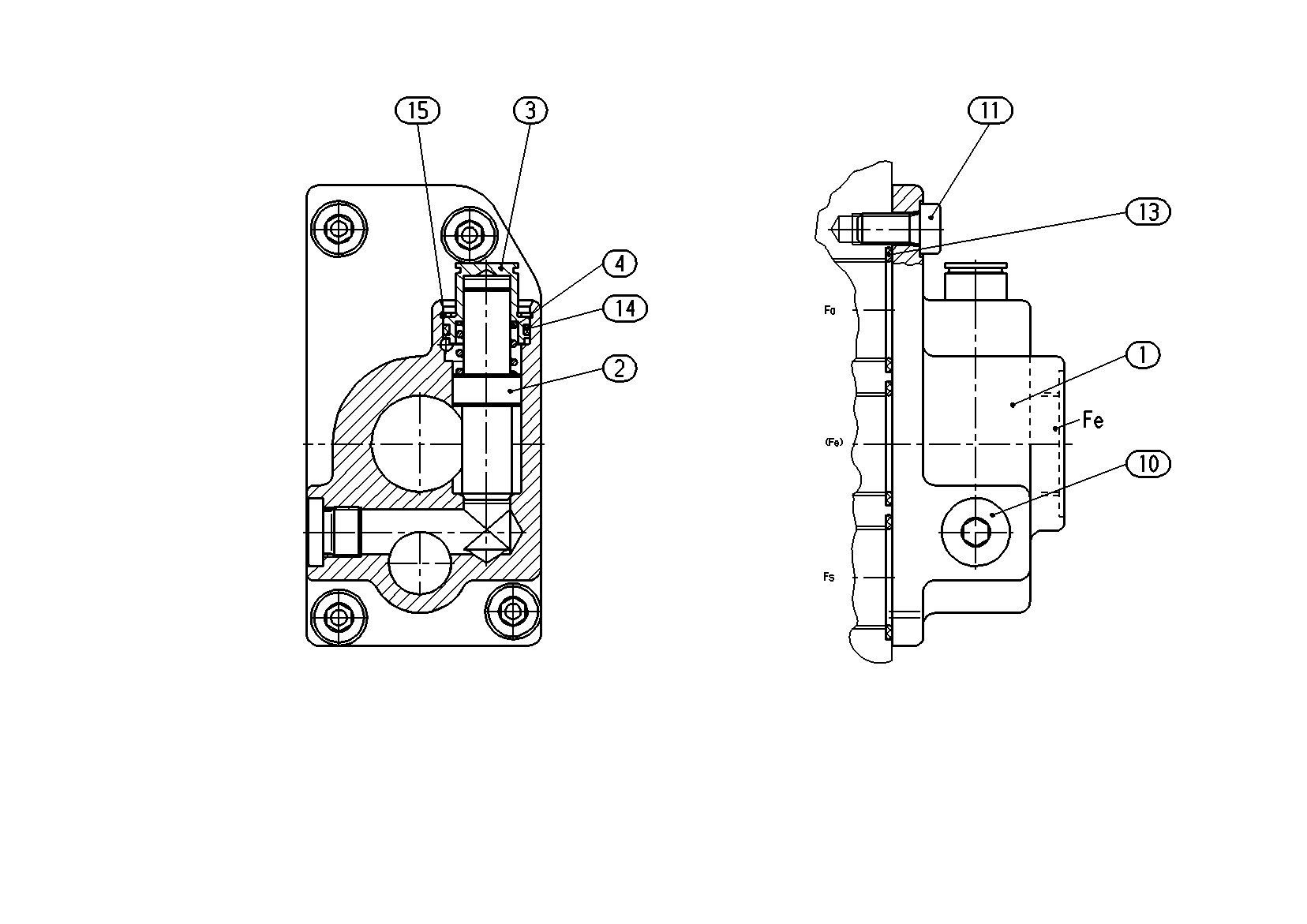

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902061991 | FILTER CONNECTION PLATE | 1 | |
| R902026589 | VALVE SPOOL | 1 | ||
| 3 | R902061989 | VALVE BUSHING | 1 | |
| 4 | R909444975 | COMPRESSION SPRING | 1 | |
| R909153816 | SCREW PLUGD | 1 | ||
| 11 | R909083196 | SOCKET HEAD CAP SCREW | 4 | |
| 13 | R909083769 | O-RINGD | 3 | |
| R909083761 | O-RINGD | 1 | ||
| R909156163 | V-RING | 1 | ||
| 98 | R902002433 | SEAL KIT | 1 |
