Unit · AXIAL-PISTON PUMP
A11VLO200LG1DH1/10L-NTD12K02R902012773
Axial piston pump Bosch Rexroth series A11VO, type code A11VLO200LG1DH1/10L-NTD12K02, material number R902012773. Nominal size: NG 200. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: with override pilot-pressure related negative control, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter (LG1DH1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a‒1976 for combination pump (T). Mounting flange: SAE J744 ‒ 4-hole (D). Working port: SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP B (K02).
- Number
- R902012773
- Type code
- A11VLO200LG1DH1/10L-NTD12K02
- Group
- A11VLO 200
- Edition
- 06/2020

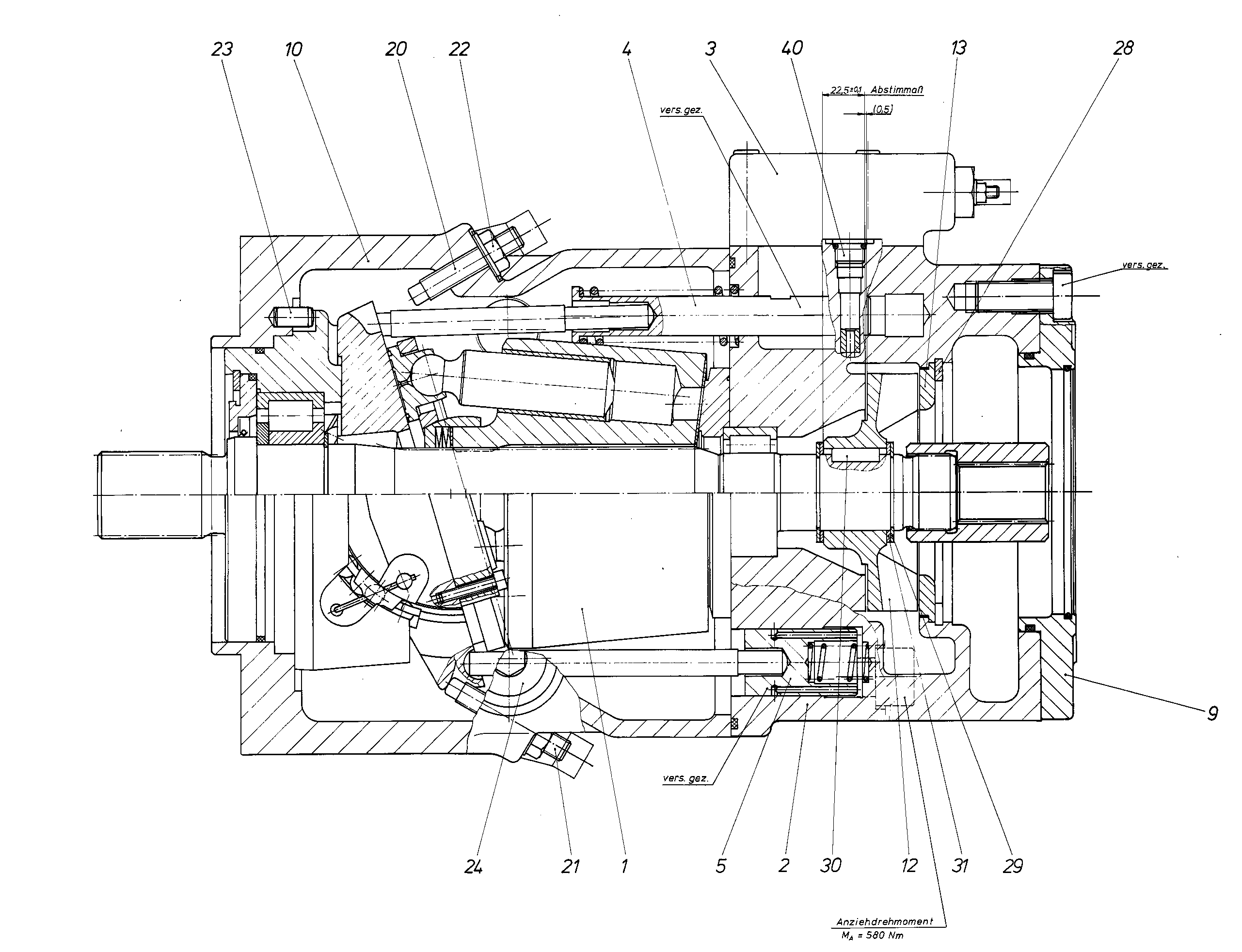

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442126 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441166 | CONNECTION PLATE, LL Assembly parts list →L | 1 | ||
| R902012709 | REGULATOR Assembly parts list →L | 1 | ||
| R909437659 | CONTROL Assembly parts list →L | 1 | ||
| R909429581 | CONTROL Assembly parts list →L | 1 | ||
| 9 | R909441715 | BELL HOUSING Assembly parts list →L | 1 | |
| R909445877 | HOUSING | 1 | ||
| R909440151 | IMPELLER, LEFT-HAND ROTATATION | 1 | ||
| 13 | R909432481 | SEALING DISK | 1 | |
| R909445854 | SETSCREW | 1 | ||
| R909445855 | SETSCREW | 1 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R913009671 | STRAIGHT PIN | 1 | ||
| 24 | R909153861 | SCREW PLUGD | 1 | |
| R909830077 | RETAINING RING | 1 | ||
| R909083362 | RETAINING RING | 2 | ||
| R909445547 | PARALLEL KEY | 1 | ||
| 31 | R909086230 | SHIM RING | 1 | |
| 31 | R909086231 | SHIM RING | 1 | |
| 31 | R909150315 | SHIM RING | 1 | |
| 40 | R902123558 | SHUTTLE VALVE Assembly parts list →L | 1 | |
| 98 | R902095612 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 200 | 200 |
| Control device | with override pilot-pressure related negative control, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter | LG1DH1 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for combination pump | T |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Working port | SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, metric with profile sealing ring based on DIN 3852 | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP B | K02 |
