Unit · CONTROL PART
A6VM215EP6D1/71N-S RECHTECKMAGNETR902016746

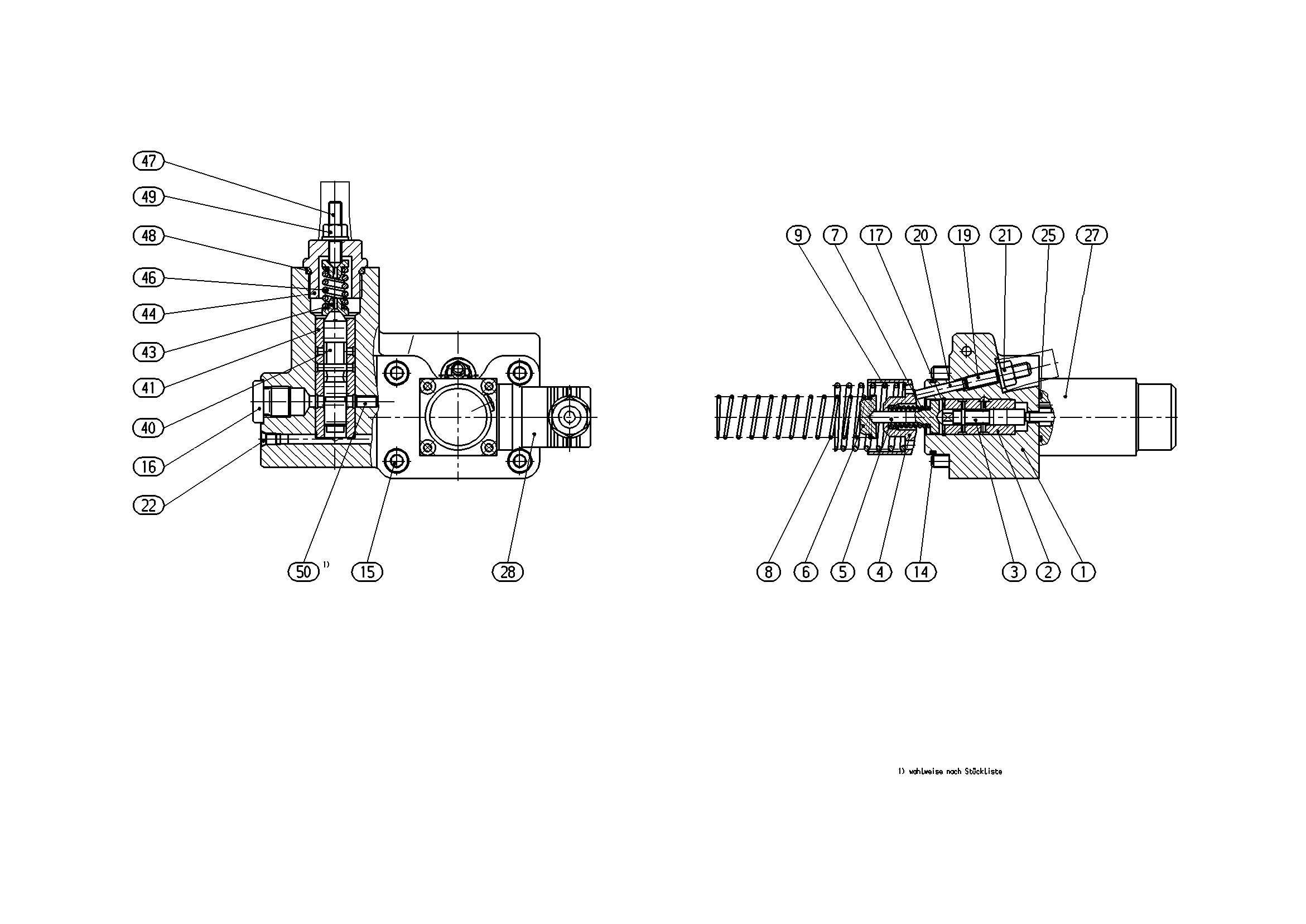

Control Bosch Rexroth series A6VM, type code A6VM215EP6D1/71N-SRECHTECKMAGNET, material number R902016746. Nominal size: NG 215. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Swivel angle sensor: neutral position switch (N). Setting range for displacement: without setting screw long (C). Version of port and fastening threads: metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 (N).
- Number
- R902016746
- Type code
- A6VM215EP6D1/71N-S RECHTECKMAGNET
- Group
- A6VM 215
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902000313 | CONTROL HOUSING | 1 | |
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909921942 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| 5 | R909921351 | SPRING DISK | 1 | |
| R909420874 | SPRING DISK | 1 | ||
| R909921421 | COMPRESSION SPRING | 1 | ||
| R902254875 | COMPRESSION SPRING | 1 | ||
| 9 | R909921342 | COMPRESSION SPRING | 1 | |
| R909085560 | O-RINGD | 1 | ||
| R909087243 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909153930 | SCREW PLUGD | 1 | |
| 17 | R909083381 | RETAINING RING | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R902600646 | O-RINGD | 1 | ||
| R909441694 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| R909831493 | PLUG-IN CONNECTOR | 1 | ||
| R902248588 | CONTROL PISTON | 1 | ||
| R902000492 | CONTROL SLEEVE | 1 | ||
| 43 | R909075975 | SPRING DISK | 2 | |
| R902057206 | SCREW PLUG | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R902052249 | SETSCREW | 1 | ||
| 48 | R909152686 | O-RINGD | 1 | |
| 49 | R909157764 | SEALING NUT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 215 | 215 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| Swivel angle sensor | Neutral position switch | N |
| Setting range for displacement | Without setting screw long | C |
| Version of port and fastening threads | Metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 | N |
