Unit · AXIAL-PISTON MOTOR
AA6VM107HA1/63L-VSD51X00A-SR902018187
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM107HA1/63L-VSD51X00A-S, material number R902018187. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Sealing material: FKM (fluoroelastomer) (V). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902018187
- Type code
- AA6VM107HA1/63L-VSD51X00A-S
- Group
- A6VM 107
- Edition
- 06/2020

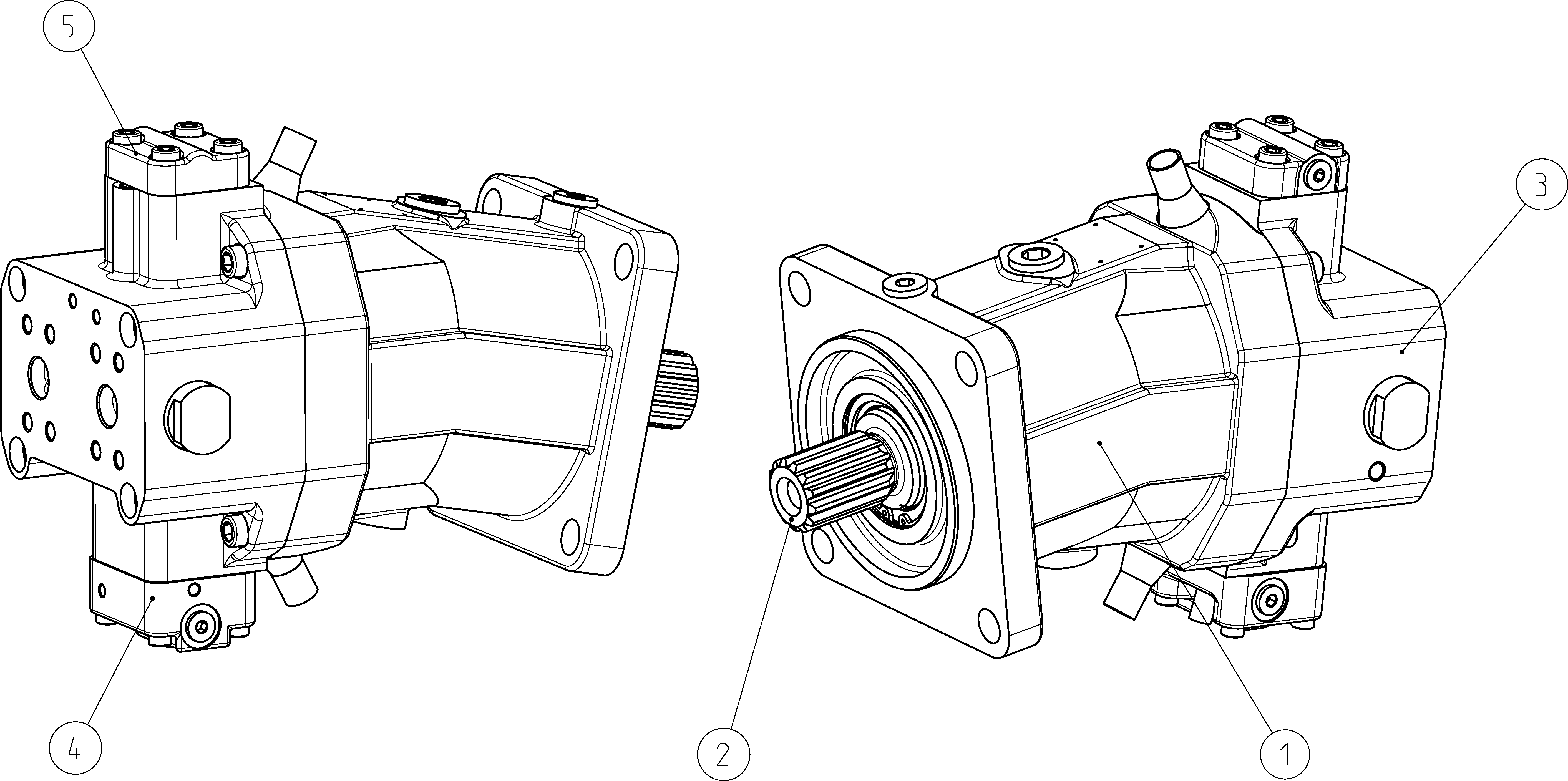

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206921 | HOUSING Assembly parts list →L | 1 | ||
| R909604151 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902209863 | COVER PLATE Assembly parts list →L | 1 | ||
| R902196802 | CONTROL PART Assembly parts list →L | 1 | ||
| R902196803 | COVER Assembly parts list →L | 1 | ||
| 98 | R902002300 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
