Unit · AXIAL-PISTON MOTOR
A2FM32/61W-VAB190JR902018451
Axial piston motor Bosch Rexroth series A2FM, type code A2FM32/61W-VAB190J, material number R902018451. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (A). Mounting flange: ISO 3019-2 4-hole (B).
- Number
- R902018451
- Type code
- A2FM32/61W-VAB190J
- Group
- A2FM 32
- Edition
- 11/2019

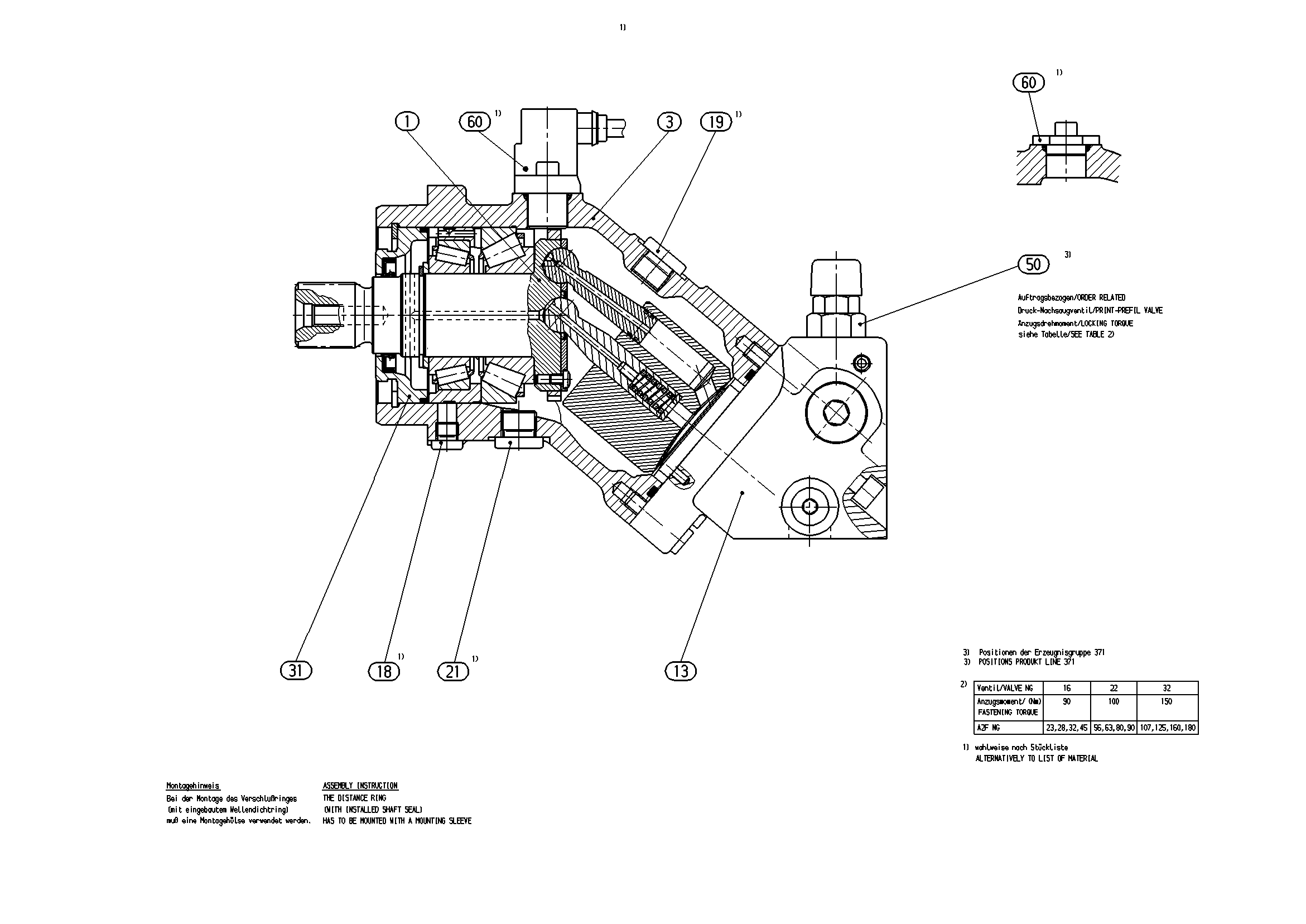

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902034160 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902040448 | HOUSING | 1 | ||
| R909610192 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909156864 | SCREW PLUGD | 1 | ||
| R902138436 | LOCKING RING Assembly parts list →L | 1 | ||
| 98 | R902002215 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | A |
| Mounting flange | ISO 3019-2 4-hole | B |
