Unit · AXIAL-PISTON MOTOR
A2FE45/61W-VZL192J-KR902024547
Axial piston motor Bosch Rexroth series A2FE, type code A2FE45/61W-VZL192J-K, material number R902024547. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor, plug-in version (E). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 2-whole (L). Working ports: port plate with pressure-relief valves 2 (192). Special version (only sizes 28 to 180): special version for slew drives (standard port plate 19) (J).
- Number
- R902024547
- Type code
- A2FE45/61W-VZL192J-K
- Group
- A2FE 45
- Edition
- 11/2019

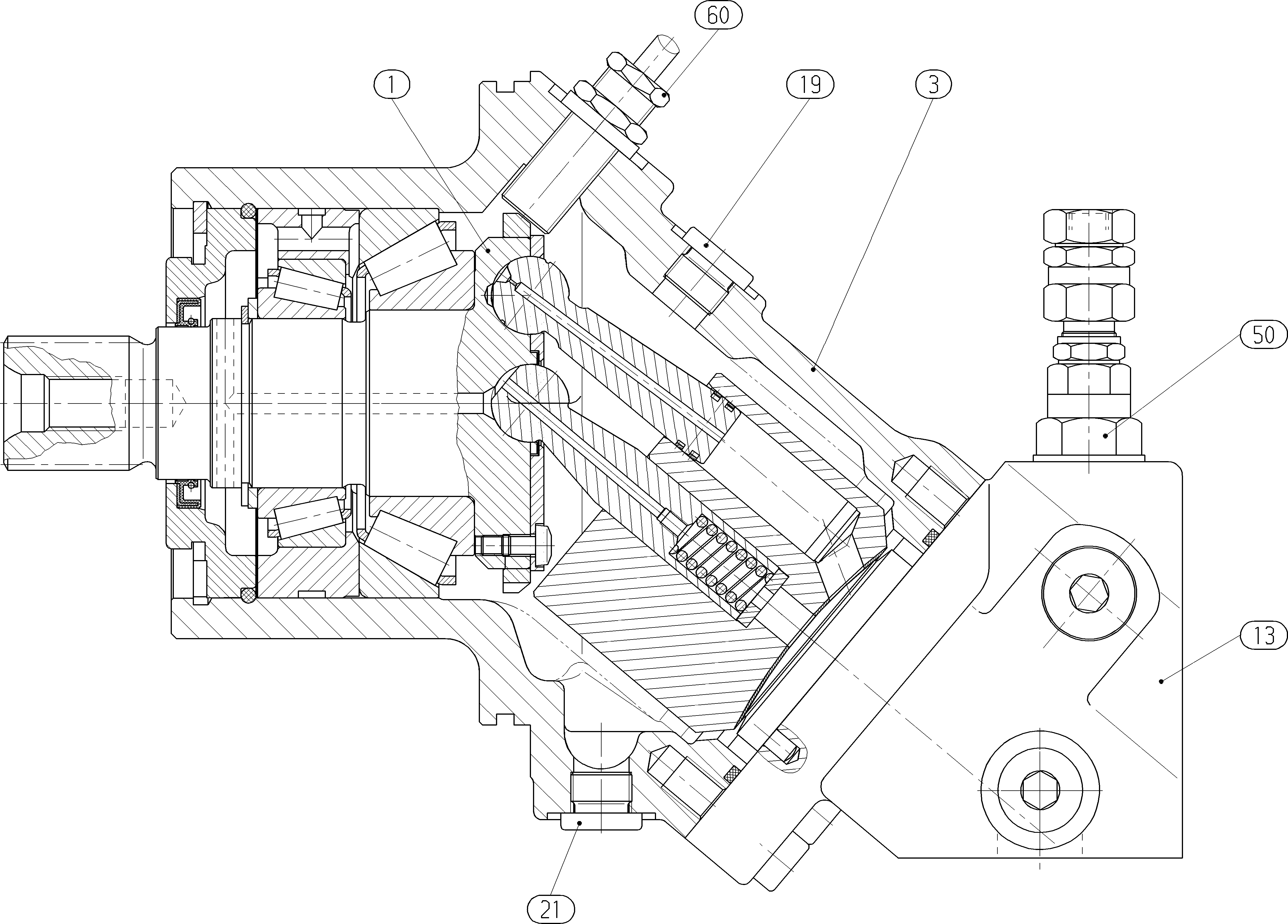

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902024565 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902206394 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor, plug-in version | E |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 2-whole | L |
| Working ports | Port plate with pressure-relief valves 2 | 192 |
| Special version (only sizes 28 to 180) | Special version for slew drives (standard port plate 19) | J |
