Unit · AXIAL-PISTON MOTOR
A6VM200DA4/63W-VAB01XDB-SR902033081
Axial piston motor Bosch Rexroth series A6VM, type code A6VM200DA4/63W-VAB01XDB-S, material number R902033081. Nominal size: NG 200. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Mounting flange: ISO 3019-2 4-hole (B). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902033081
- Type code
- A6VM200DA4/63W-VAB01XDB-S
- Group
- A6VM 200
- Edition
- 11/2019

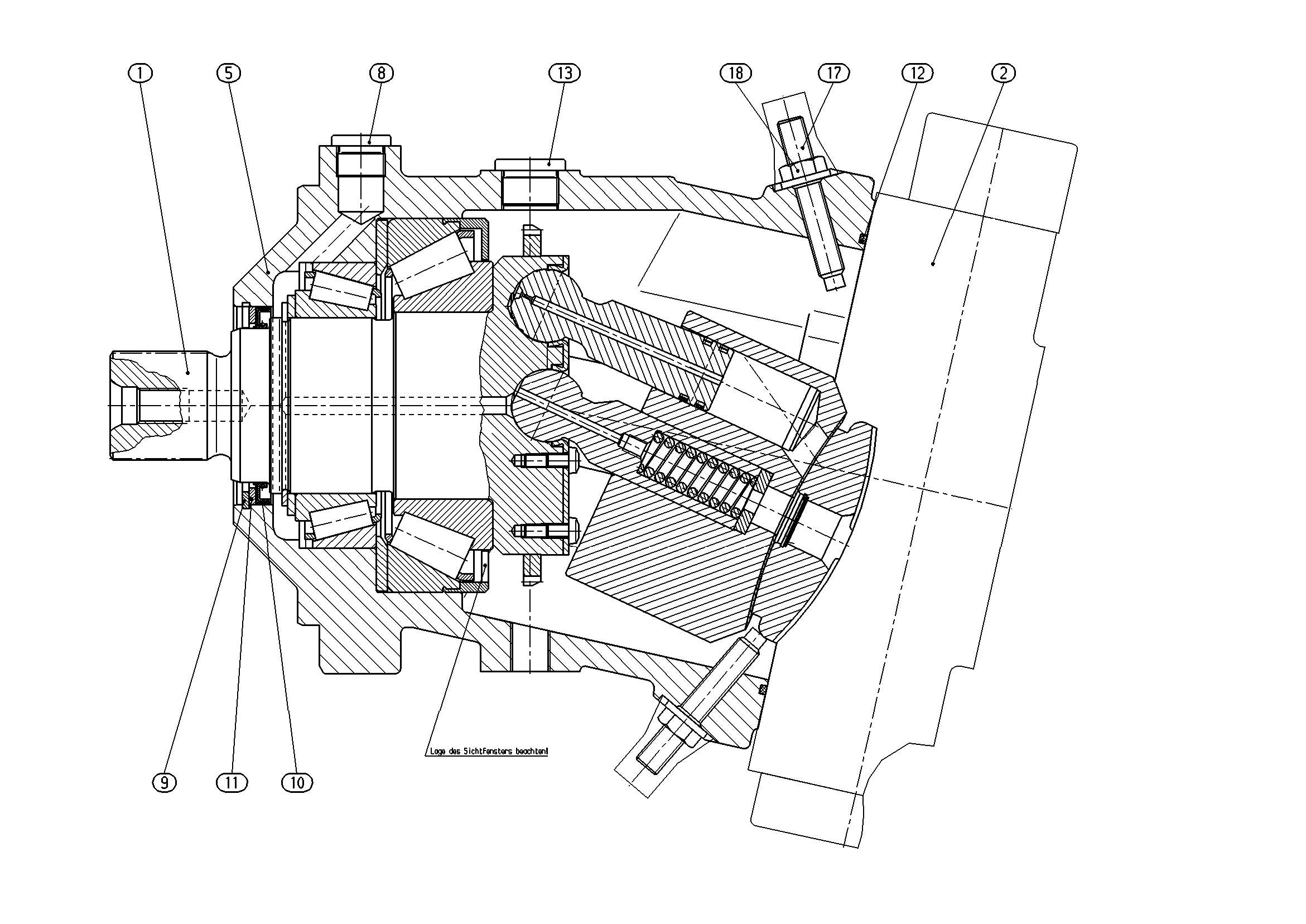

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| — | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902004181 | CONTROL Assembly parts list →L | 1 | ||
| R902027354 | HOUSING | 1 | ||
| R909083416 | RETAINING RING | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909832084 | SUPPORTING DISC | 1 | ||
| R902253128 | SEAL RINGD | 1 | ||
| R909446862 | SETSCREW Assembly parts list →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| 98 | R902002306 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 200 | 200 |
| Control device | Automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve | DA |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Mounting flange | ISO 3019-2 4-hole | B |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
