Unit · AXIAL-PISTON PUMP
A11VO130LRDH1/10+A10VO28DR/31-KR902033580
Axial piston pump Bosch Rexroth series A11VO, type code A11VO130LRDH1/10+A10VO28DR/31-K, material number R902033580. Nominal size: NG 130. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: power controller fixed setting, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter (LRDH1).
- Number
- R902033580
- Type code
- A11VO130LRDH1/10+A10VO28DR/31-K
- Group
- A10VO 28
- Edition
- 06/2020

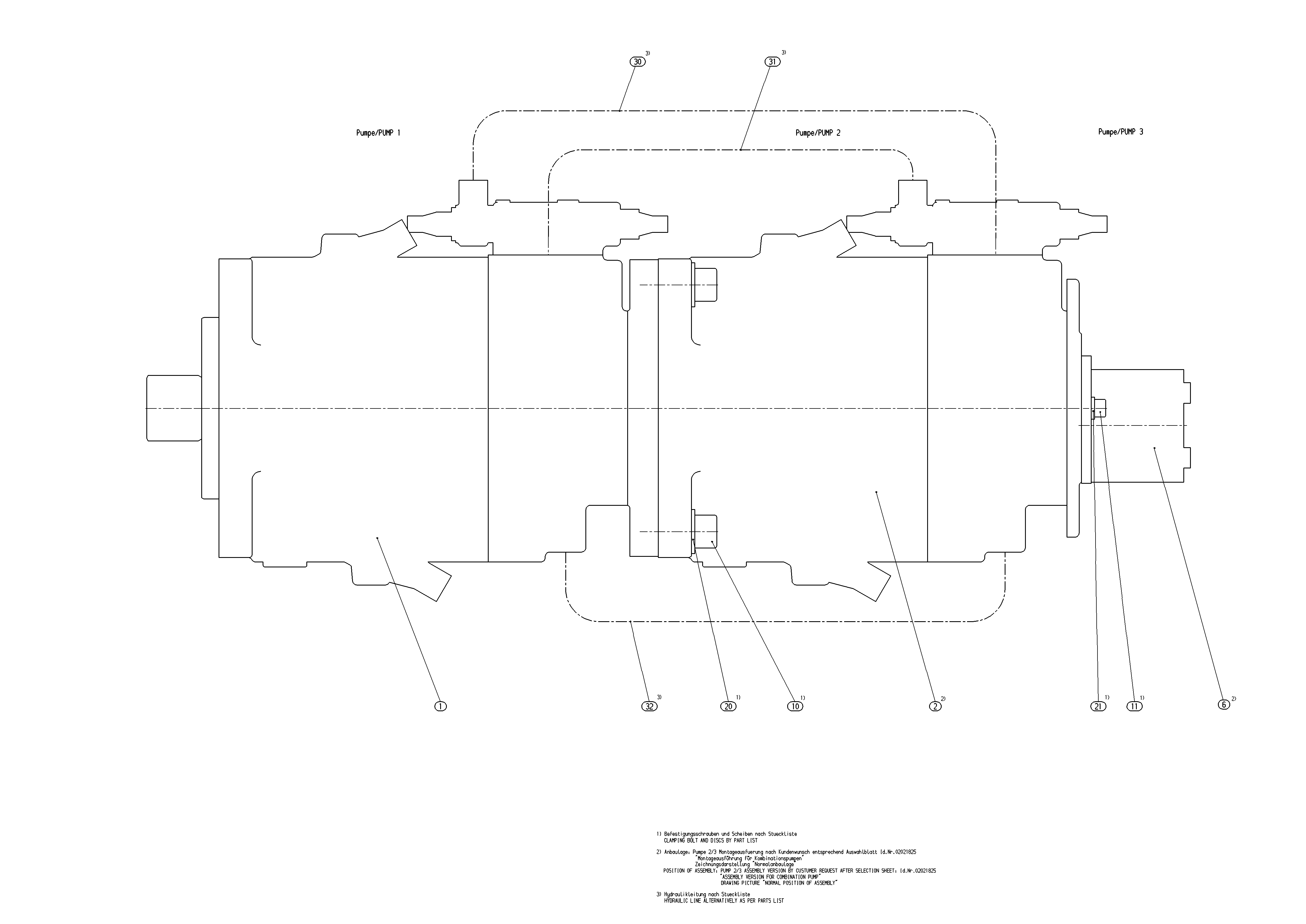

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909601525 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902433568 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510725102 | HYDRAULIC GEAR PUMPL | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010115 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 130 | 130 |
| Control device | Power controller fixed setting, with pressure cut-off, with hydraulic negative control Δp = 25 bar stroke limiter | LRDH1 |
| Index | Size 40 … 130 | 0 |
