Unit · AXIAL-PISTON MOTOR
A2FM45/61W-VZB020DJ-KR902034345
Axial piston motor Bosch Rexroth series A2FM, type code A2FM45/61W-VZB020DJ-K, material number R902034345. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working ports: SAE working ports 0 A and B at side, opposite 02 (020).
- Number
- R902034345
- Type code
- A2FM45/61W-VZB020DJ-K
- Group
- A2FM 45
- Edition
- 02/2019

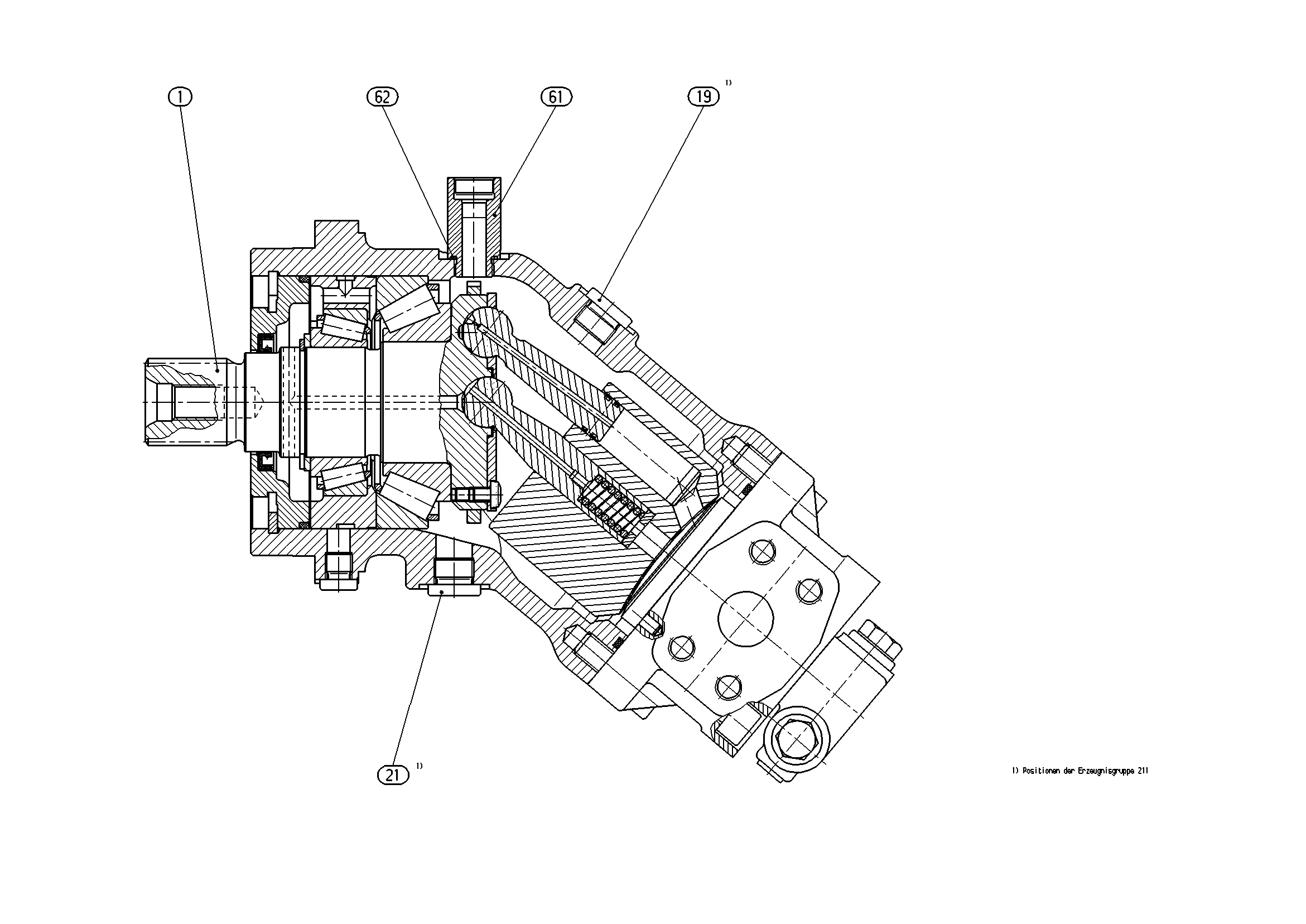

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902034343 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902034357 | CONNECTION ADAPTER | 1 | ||
| R900012470 | SEAL RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working ports | SAE working ports 0 A and B at side, opposite 02 | 020 |
