Unit · AXIAL-PISTON PUMP
A4VG90DGDMT3L/32R-NZF02F731D-SR902034906
Axial piston pump Bosch Rexroth series A4VG, type code A4VG90DGDMT3L/32R-NZF02F731D-S, material number R902034906. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: hydraulic control, direct operated (DG). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). Stroking chamber pressure port: stroking chamber pressure port X X (T). DA control valve: DA control valve, mechanically adjustable, with position lever direction of actuation, counter-clockwise (3L). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: flange SAE J744 Hub for splined shaft, 152-2/4 (D) W35 2×30×16×9g (73).
- Number
- R902034906
- Type code
- A4VG90DGDMT3L/32R-NZF02F731D-S
- Group
- A4VG 90
- Edition
- 05/2020

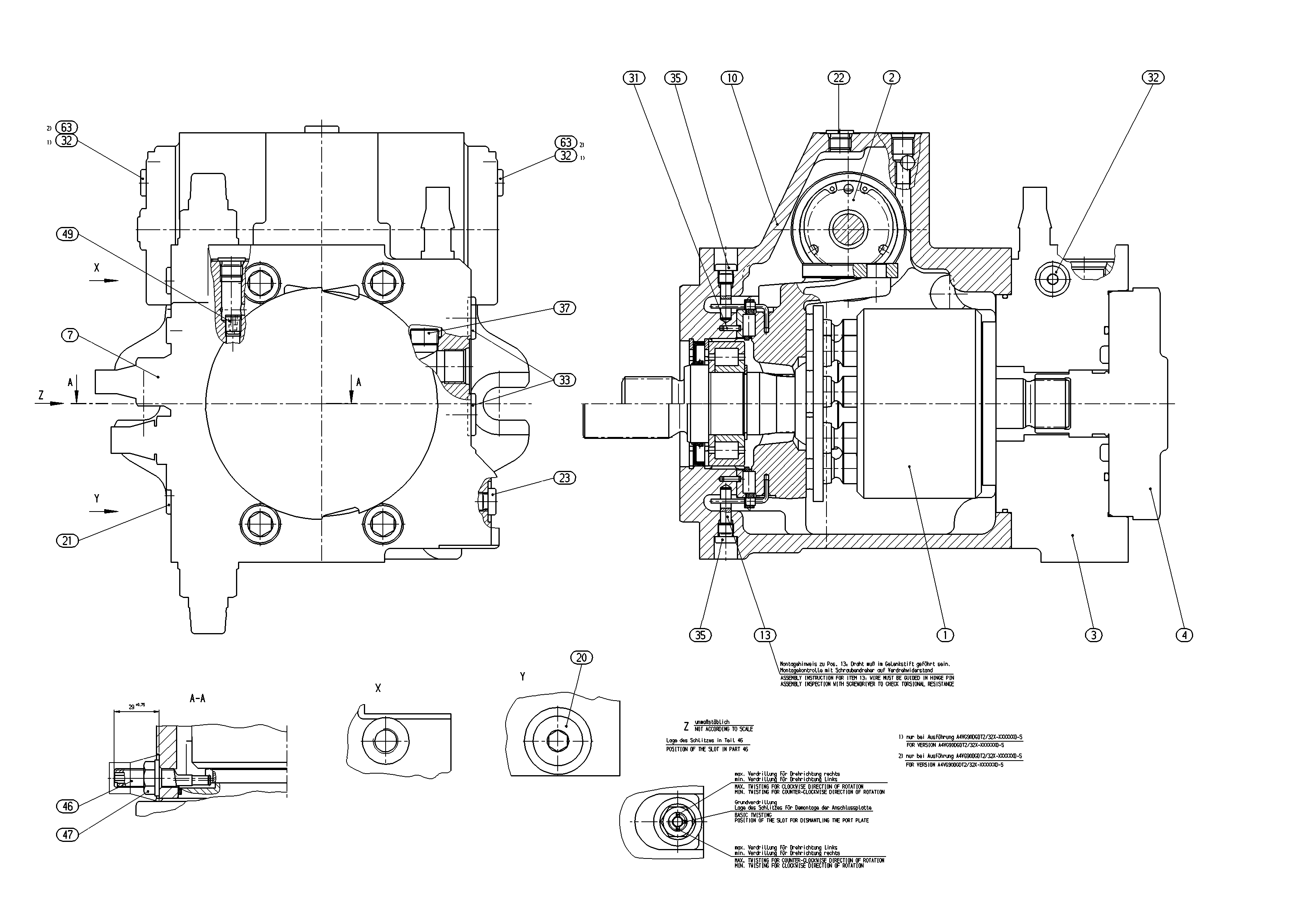

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909608876 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902032053 | CONTROL Assembly parts list →L | 1 | ||
| R909608592 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606805 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909606421 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902020371 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909087913 | SCREW PLUG | 1 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909426708 | NOZZLE | 1 | ||
| 98 | R902095654 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Control device | Hydraulic control, direct operated | DG |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| Stroking chamber pressure port | Stroking chamber pressure port X X | T |
| DA control valve | DA control valve, mechanically adjustable, with position lever direction of actuation, counter-clockwise | 3L |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Flange SAE J744 Hub for splined shaft, 152-2/4 (D) W35 2×30×16×9g | 73 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Standard/special version | Special version | -S |
