Unit · AXIAL-PISTON PUMP
A4VTG71HW/32R-NLD10F011S-SR902037887
Axial piston pump Bosch Rexroth series A4VTG, type code A4VTG71HW/32R-NLD10F011S-S, material number R902037887.
- Number
- R902037887
- Type code
- A4VTG71HW/32R-NLD10F011S-S
- Group
- A4VTG 71
- Edition
- 01/2018

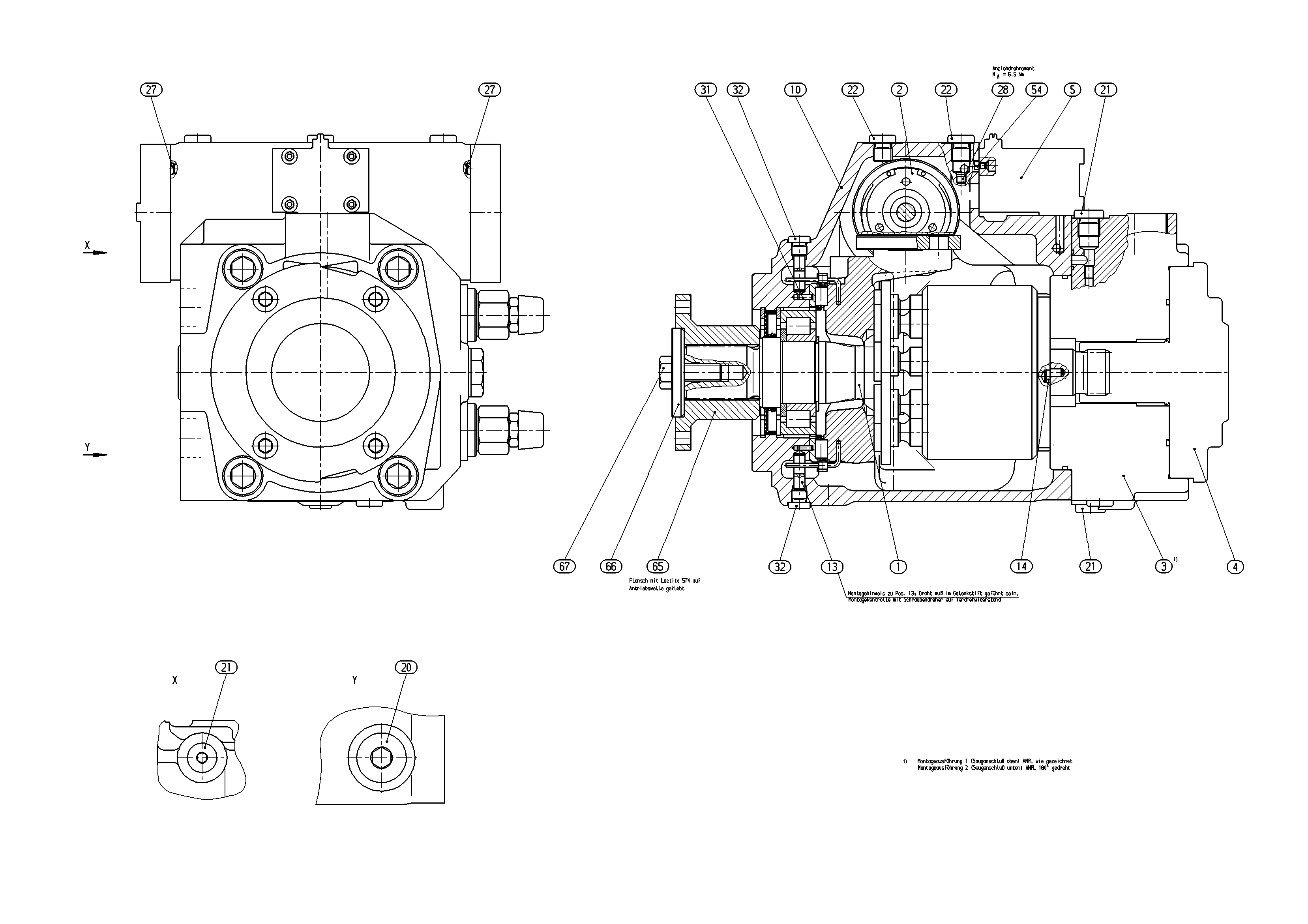

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902083790 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902019518 | CONTROL Assembly parts list →L | 1 | ||
| R909613516 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902006245 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902031253 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902020322 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909408188 | ECCENTRIC BOLT | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R902601867 | NOZZLE | 1 | ||
| R909435040 | COUPLING FLANGE | 1 | ||
| R909449984 | CENTERING DISK | 1 | ||
| R909831458 | HEXAGON SCREW | 1 |
