Unit · AXIAL-PISTON PUMP
AA10VG28DG/10+AA10VG28DG/10-SKR902039854
Axial piston pump Bosch Rexroth series A10VG, type code AA10VG28DG/10+AA10VG28DG/10-SK, material number R902039854. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi (AA10V). Operating mode: pump, closed circuit (G). Control device: hydraulic control direct operated (DG).
- Number
- R902039854
- Type code
- AA10VG28DG/10+AA10VG28DG/10-SK
- Group
- A10VG 28
- Edition
- 07/2020

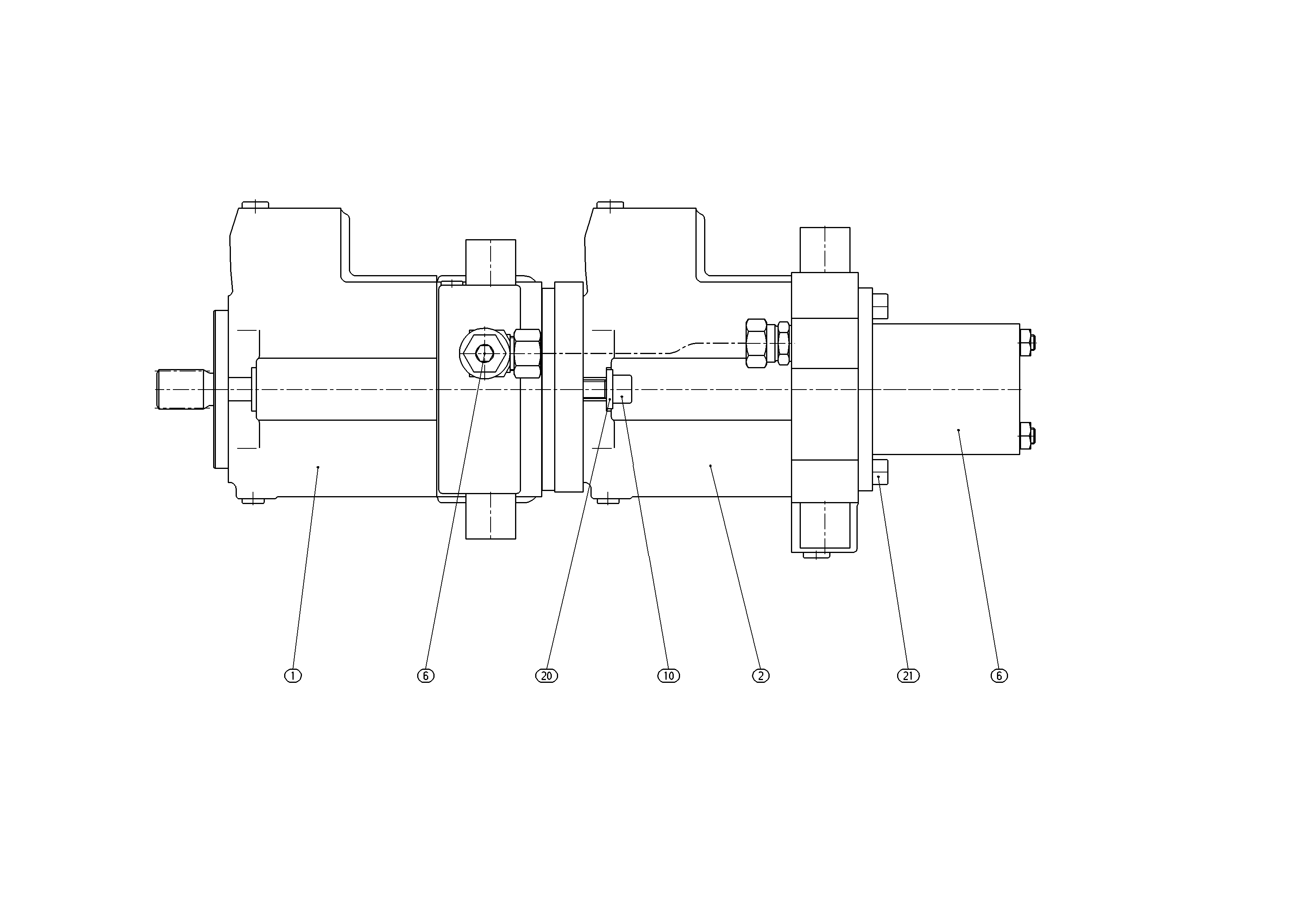

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902039784 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R902039778 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R902039810 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R902601467 | HYDRAULIC GEAR PUMP | 1 | ||
| R909830580 | SOCKET HEAD CAP SCREW | 2 | ||
| R902021296 | WASHER | 2 | ||
| 2916010114 | WASHER | 2 | ||
| R902600334 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi | AA10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Control device | Hydraulic control direct operated | DG |
| Series | Series 1, index 0 | 10 |
