Unit · AXIAL-PISTON MOTOR
A2FE63/61W-VZL181-SR902040005
Axial piston motor Bosch Rexroth series A2FE, type code A2FE63/61W-VZL181-S, material number R902040005. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor, plug-in version (E). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 2-whole (L). Working ports: port plate with pressure relief valves BVD for mounting a counterbalance valve 18 8 (181). Standard / special version: special version (-S).
- Number
- R902040005
- Type code
- A2FE63/61W-VZL181-S
- Group
- A2FE 63
- Edition
- 10/2018

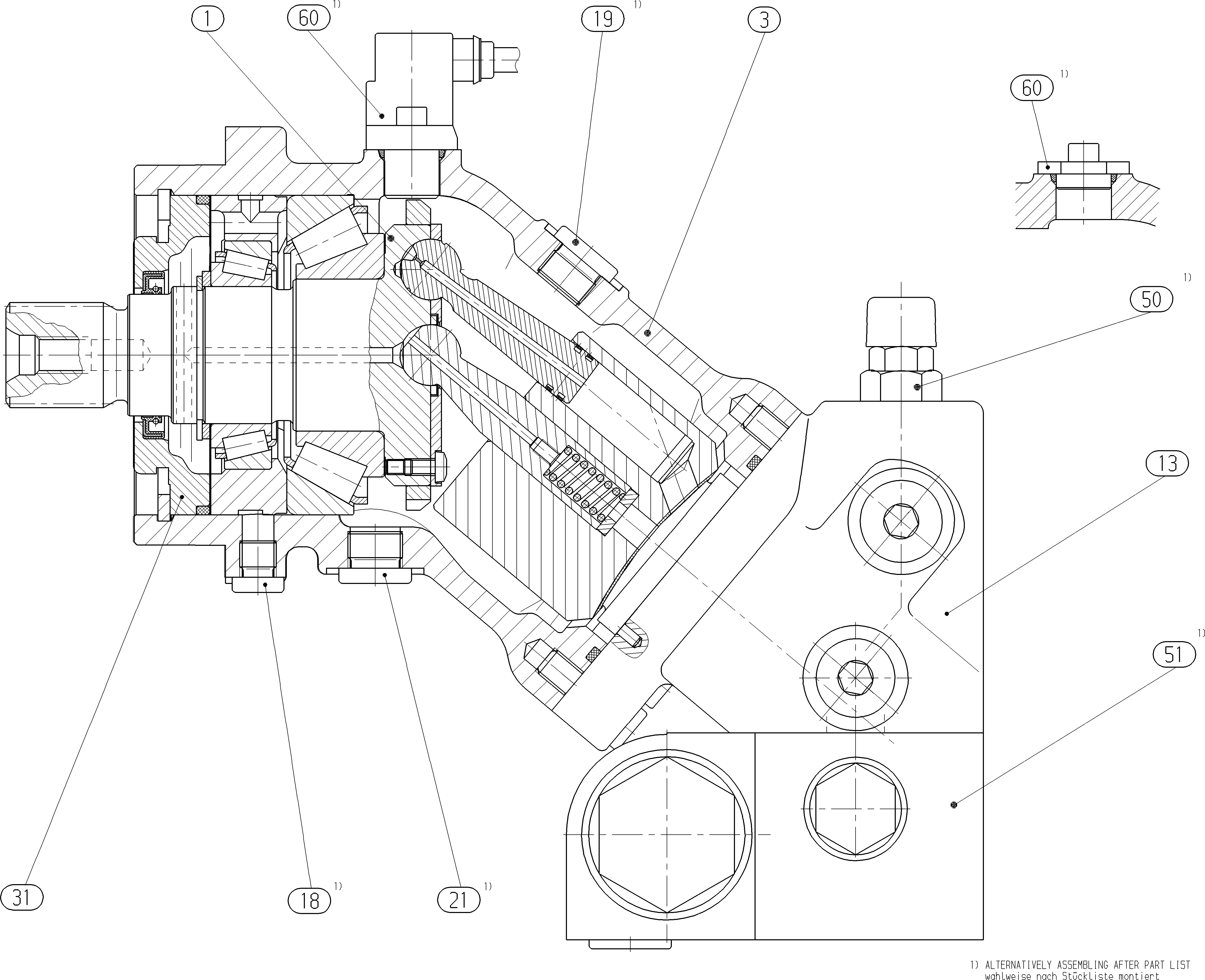

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902031613 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902042330 | HOUSING | 1 | ||
| R909438262 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902149068 | LOCKING RING Assembly parts list →L | 1 | ||
| R902603805 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 | ||
| R902050719 | BRAKE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor, plug-in version | E |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 2-whole | L |
| Working ports | Port plate with pressure relief valves BVD for mounting a counterbalance valve 18 8 | 181 |
| Standard / special version | Special version | -S |
