Unit · AXIAL-PISTON MOTOR
A6VE55HD2D/63W-VZL02000BR902040079
Axial piston motor Bosch Rexroth series A6VM, type code A6VE55HD2D/63W-VZL02000B, material number R902040079. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, hydraulic ΔpSt = 25 bar (HD2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902040079
- Type code
- A6VE55HD2D/63W-VZL02000B
- Group
- A6VE 55
- Edition
- 06/2020

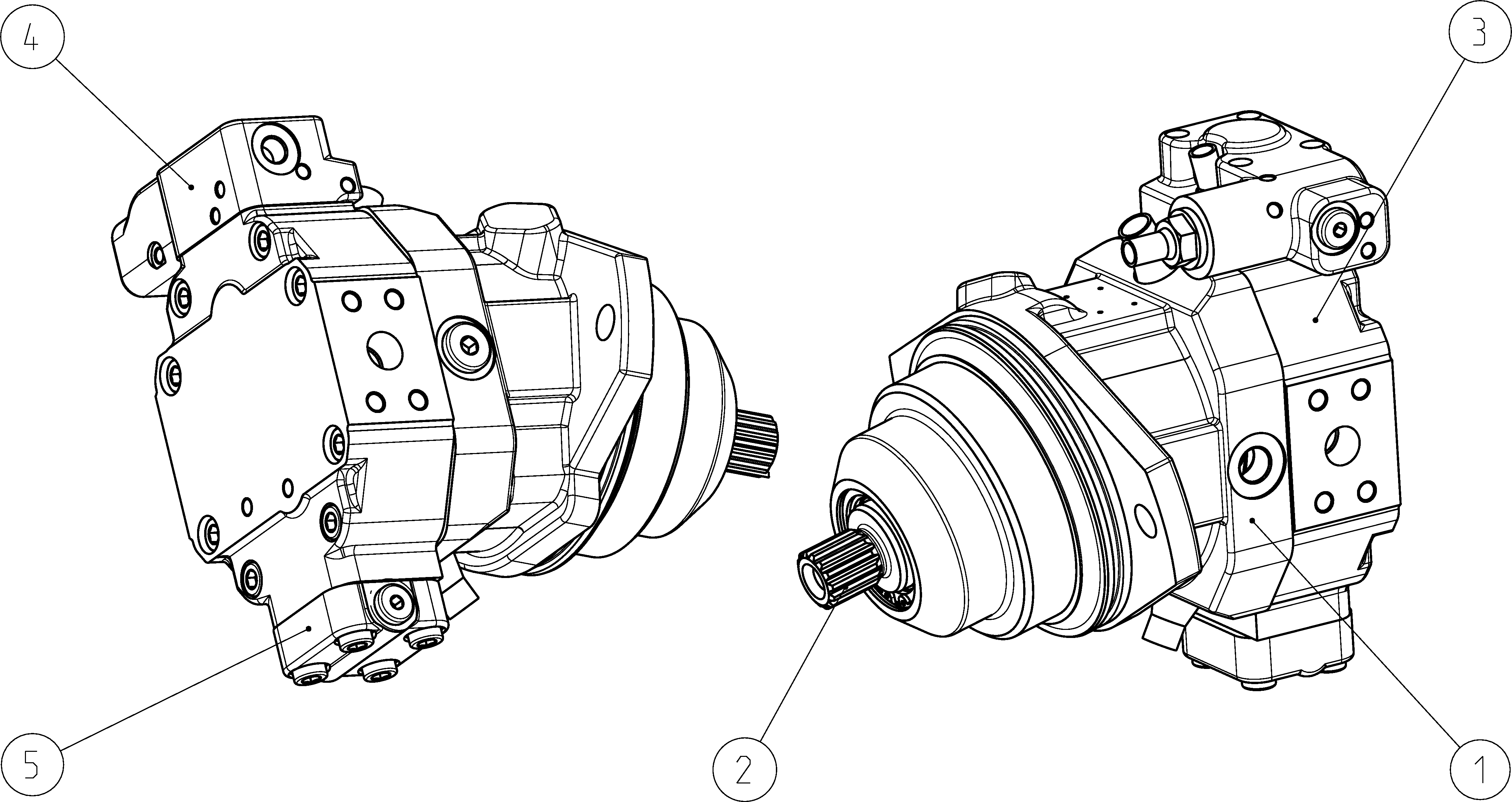

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902219066 | HOUSING Assembly parts list →L | 1 | ||
| R909603915 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902200131 | COVER PLATE Assembly parts list →L | 1 | ||
| R902011841 | CONTROL PART Assembly parts list →L | 1 | ||
| R902241000 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 55 | 55 |
| Control device | Proportional control, hydraulic ΔpSt = 25 bar | HD2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
